Best FTA receiver for the money by "King"



Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3024
Registered: Oct-06
When yo are in the market shopping for a great FTA receiver
These are the things yo should look for:


- Great video quality
- Easy to use/load bins with USB port
- Ability to record with external hard drive
- Good support
- Low cost FTA receiver (Under $130)

Company main website:
[link removed]
http://www.ftaconcept.com
http://www.freesatfix.com
http://www.devilsreaper.com


How do I know the video is good?
Yo should look in the specs for Video Resolution 720 x 480
When they don't say it it means they don't want yo to know cuz it's low

What's the best way to get the highest video quality?
Use componenet R/G/B + R/W (5 cables) or S-Video




Tuner & Channel Decoder
Input Connector F-type, IEC 169-24, Female
Loop through out F-type, IEC 169-24, Female
Frequency Range 950MHz ~ 2150MHz
Input Impedance 75 ohm, unbalanced
Signal Level -65 to -25dBm
LNB Power 13/18VDC, max.400mA
22KHz Tone (22±2)KHz, (0.6±0.2)V
DISEqC Control V1.0/1.2/USALS Compatible
Demodulation QPSK
Input Symbol Rate 2 ~ 45 Ms/s
FEC Decoder 1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint Length K=7

MPEG Transport Stream A/V Decoding
Transport Stream MPEG-II ISO/IEC 13818
Profile Level MPEG-II MP@ML
Input Rate Max. 15Mbit/s
Video Formats 4:3 LetterBox, 4:3 PanScan, 16:9
Video Resolution 720 x 576, 720 x 480
Audio Decoding MPEG/MusiCam Layer I&II
Audio Mode Stereo/Joint stereo/Mono
Sampling Rate 32KHz, 44.1KHz and 48KHz

Main System
Main Processor Conexant Virgo(32-bit RISC CPU 180 MIPS)
Memory Flash-ROM : 2 MBytes
SDRAM : 32 MBytes

Audio/Video & Data IN/OUT
Video CVBS Video Output (RCA)
S-VHS Video Output (Mini-DIN)
Y/Pb/Pr Video Output (RCA)
Audio L/R RCA(Volume and Mute Control)
AC-3 Dolby Digital (RCA & Optical)
RS-232C 9 pin D-SUB (Male) type, Transfer rate 115Kbps
USB USB 2.0 Host Support

RF Modulator
RF Connector IEC 169-24, Female
Frequency CH 3 : 61.25MHz
CH 4 : 67.25MHz
Output Channel CH 3 / CH 4
TV Standard NTSC-M
Preset Channel CH 3 (or TBD)
Software changeable by Menu

Front Panel
Slot 1 Smart Card Slot (Option)
1 USB Host Slot
Buttons 3 Buttons (CH UP/DOWN, STANDBY)
Display 7-Segment (Channel No. or Time)
Indicators 2 LEDs (STANDBY, REMOTE)

Power Supply
Input Voltage AC 90 ~ 250V, 50/60Hz
Type SMPS
Power Consumption Max. 20W
Standby Power Max. 8W
Protection Separate Internal Fuse & Lighting protection

Physical Specification
Size (W x H x D) 260mm X 55mm X 210mm
Weight (Net) 1.6Kg
Operating Temp. 0°C ~ +45°C
Storage Temp. -10°C ~ +70°C

Main Features
Personal Video Recorder (PVR) Ready via USB 2.0
USB 2.0 Host Support (MP3 Player & JPEG Viewer)
MPEG-II Digital & Fully DVB Compliant
Blind Scan
Multi-LNB Controlled by DiSEqC Control Version 1.0, 1.2 and USALS
Multi-Satellite Search
Support 7-Day EPG
On-Screen Display with 16 bit Color Full Resolution
Favorite Channel Groups
Powerful Channel Control by Favorites, Lock, Skip, Move and Delete
Channel Sorting by Alphabet, Transponder and CAS
Multi-language Supported (OSD & Menu)
Closed Caption Support (OSD and VBI Insertion)
Maximum 5,000 Channels Programmable
Multi-picture Display
Zoom Function in Pause
Parental Lock / Receiver Lock
CVBS Video & Audio Output via RCA
Component Y/Pb/Pr Output via RCA
S-VHS Video Output
Optical & Coaxial Output for Digital Audio
Software & Channel Database Upgrade via RS-232 & USB
Universal Remote Control
Smart Card Reader (Option)


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3026
Registered: Oct-06
Upload
Upload
Upload


Gold Member
Username: Rtap

FL

Post Number: 2199
Registered: Jan-07
whats up king.quetion are fta units capable of working with the new nagra3 or any thing they throw at us.


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3027
Registered: Oct-06
If hackers break the code
It can work on FTA receivers

The rummers by coders claim IKS is the only one that can and I think that's bull
But that's just my opinion


Silver Member
Username: Mucho

Post Number: 452
Registered: Dec-07
King Tapeman wrote
(The rummers by coders claim IKS is the only one that can and I think that's bull)


Did you mean Rumors?
A rummer is a large drinking cup or glass.


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3038
Registered: Oct-06

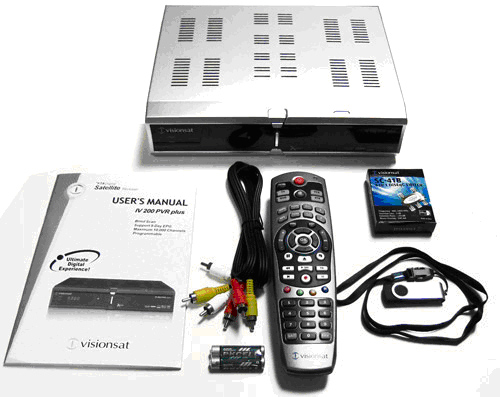

Visionsat is best FTA receiver in our cosmo
Accourding to law of Physic


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3039
Registered: Oct-06
Please stop picking on my Englic
I failed Englic and yo fail electronic
I guess we're even now


Gold Member
Username: Donnie1973

Post Number: 3039
Registered: May-06
i think the SV elite is the best out there. 165 for a dual tuner... yes, this means you can watch 2 games using ur PIP which most peoples tv' have now. Football is comming guys!!!


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3043
Registered: Oct-06
Yep
SV-360 Elite is perhaps a great choice as well
3 USB ports 2-tuners, PIP PVR on external hard drive

But I find prices for elite 360 more like $180 to $200 price range
Platinum is $160
I don't see their video resolution specs
All they say superior video quality thru component output which can mean anything as component out is twice is always better quality

Don't forget dual tuners yo must have 2 independent satellite signals one to each tuner if yo split the signal internally or externally yo can only watch dual tuners on same polarity

When I made a video quality comparison I found Visionsat at least 25% sharper picture and colors than VU-sat
If I get my hands on a SV-360 Elite I will let yo know

I rank VU-sat among best tuners best service but worst video quality comparing to any receiver I tried
SV maybe better but i'm yet to try it
When I do I'll post it

Bottom line yo can't beat a PVR receiver with an outstanding video specs all for $130


Bronze Member
Username: Jjgee

Palatine, IL USA

Post Number: 57
Registered: Apr-08
Hey TAP, where you been hiding? I know you haven't been that busy at Crazy.


Gold Member
Username: Donnie1973

Post Number: 3040
Registered: May-06
I bought one for 170 a few weeks ago, but saw last week a coupon for them.
The platinim i got for 136. free shipping.
I am curious if you can connect a splitter like dn does to get 2 tv's working using the dual tuners??
then u have 2 recievers for 165...! There has to be a way to separate the signals. I just now thought of it so I will read up on it.


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3047
Registered: Oct-06
Can't do
FTA dual tuner specs is:
2 tuners with 2 different inputs
the 2 tuners got one common output
on screen display

It's not like DN receiver design which is made for the purpose of 2nd room TV receiver

The only split yo can do is what's on the screen


Gold Member
Username: Donnie1973

Post Number: 3043
Registered: May-06
the dn dual tuners have two inputs with one output as well tho... right? using diplexer. it APPEARS to be very simillar


Gold Member
Username: Donnie1973

Post Number: 3044
Registered: May-06
yeah, i see the 2 now. nevermind.


Silver Member
Username: Themangod

Post Number: 536
Registered: Oct-06
cool sat clone
ew.


Silver Member
Username: Gregraf

Post Number: 925
Registered: Dec-07
Kate clone
double ew

Upload


Bronze Member
Username: Vhl71

Post Number: 94
Registered: Jan-07
hey king..how do you compare this with CNX??


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3049
Registered: Oct-06
CNX is a great FTA receiver
But I would go with visionsat as it is the newest most afordable PVR on the market today

The SV elite is next hot item if yo can afford an additional $40 for 2 tuner receiver


Bronze Member
Username: Thermongod

Post :579

Post Number: 14
Registered: Jul-08
Tapeman
Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3024
Registered: Oct-06
Posted on Monday, July 07, 2008 - 01:28 am:

--------------------------------------------------------------------------------
When yo are in the market shopping for a great FTA receiver
These are the things yo should look for:

- Great video quality
- Easy to use/load bins with USB port
- Ability to record with external hard drive
- Good support
- Low cost FTA receiver (Under $130)

Company main website:
[link removed]
http://www.ftaconcept.com
http://www.freesatfix.com
http://www.devilsreaper.com


How do I know the video is good?
Yo should look in the specs for Video Resolution 720 x 480
When they don't say it it means they don't want yo to know cuz it's low

What's the best way to get the highest video quality?
Use componenet R/G/B + R/W (5 cables) or S-Video




Tuner & Channel Decoder
Input Connector F-type, IEC 169-24, Female
Loop through out F-type, IEC 169-24, Female
Frequency Range 950MHz ~ 2150MHz
Input Impedance 75 ohm, unbalanced
Signal Level -65 to -25dBm
LNB Power 13/18VDC, max.400mA
22KHz Tone (22±2)KHz, (0.6±0.2)V
DISEqC Control V1.0/1.2/USALS Compatible
Demodulation QPSK
Input Symbol Rate 2 ~ 45 Ms/s
FEC Decoder 1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint Length K=7

MPEG Transport Stream A/V Decoding
Transport Stream MPEG-II ISO/IEC 13818
Profile Level MPEG-II MP@ML
Input Rate Max. 15Mbit/s
Video Formats 4:3 LetterBox, 4:3 PanScan, 16:9
Video Resolution 720 x 576, 720 x 480
Audio Decoding MPEG/MusiCam Layer I&II
Audio Mode Stereo/Joint stereo/Mono
Sampling Rate 32KHz, 44.1KHz and 48KHz

Main System
Main Processor Conexant Virgo(32-bit RISC CPU 180 MIPS)
Memory Flash-ROM : 2 MBytes
SDRAM : 32 MBytes

Audio/Video & Data IN/OUT
Video CVBS Video Output (RCA)
S-VHS Video Output (Mini-DIN)
Y/Pb/Pr Video Output (RCA)
Audio L/R RCA(Volume and Mute Control)
AC-3 Dolby Digital (RCA & Optical)
RS-232C 9 pin D-SUB (Male) type, Transfer rate 115Kbps
USB USB 2.0 Host Support

RF Modulator
RF Connector IEC 169-24, Female
Frequency CH 3 : 61.25MHz
CH 4 : 67.25MHz
Output Channel CH 3 / CH 4
TV Standard NTSC-M
Preset Channel CH 3 (or TBD)
Software changeable by Menu

Front Panel
Slot 1 Smart Card Slot (Option)
1 USB Host Slot
Buttons 3 Buttons (CH UP/DOWN, STANDBY)
Display 7-Segment (Channel No. or Time)
Indicators 2 LEDs (STANDBY, REMOTE)

Power Supply
Input Voltage AC 90 ~ 250V, 50/60Hz
Type SMPS
Power Consumption Max. 20W
Standby Power Max. 8W
Protection Separate Internal Fuse & Lighting protection

Physical Specification
Size (W x H x D) 260mm X 55mm X 210mm
Weight (Net) 1.6Kg
Operating Temp. 0°C ~ +45°C
Storage Temp. -10°C ~ +70°C

Main Features
Personal Video Recorder (PVR) Ready via USB 2.0
USB 2.0 Host Support (MP3 Player & JPEG Viewer)
MPEG-II Digital & Fully DVB Compliant
Blind Scan
Multi-LNB Controlled by DiSEqC Control Version 1.0, 1.2 and USALS
Multi-Satellite Search
Support 7-Day EPG
On-Screen Display with 16 bit Color Full Resolution
Favorite Channel Groups
Powerful Channel Control by Favorites, Lock, Skip, Move and Delete
Channel Sorting by Alphabet, Transponder and CAS
Multi-language Supported (OSD & Menu)
Closed Caption Support (OSD and VBI Insertion)
Maximum 5,000 Channels Programmable
Multi-picture Display
Zoom Function in Pause
Parental Lock / Receiver Lock
CVBS Video & Audio Output via RCA
Component Y/Pb/Pr Output via RCA
S-VHS Video Output
Optical & Coaxial Output for Digital Audio
Software & Channel Database Upgrade via RS-232 & USB
Universal Remote Control
Smart Card Reader (Option)
Relevant Product Info


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3051
Registered: Oct-06
It's that Yukon Moron AKA White Hawk
Using his electronic c/p
I feel sorry for his family to keep up with his retardness all of these years

Grow up child
Yo just c/p first post
« Previous Thread Next Thread »



Main Forums

Today's Posts

Forum Help

Follow Us
