Drawing of a Satellite



Gold Member
Username: Crazy_greek

Post Number: 1163
Registered: Jul-06

Would anyone here know where I can get a close up drawing of a Satellite showing where the transponders(TPs) are located?


Bronze Member
Username: Bull_rider

Post Number: 20
Registered: Sep-07
R U SURE YOU CAN HANDLE A DRAWING. YOU SEEM PRETTY DUMB TO ME


Silver Member
Username: Runnerguy

Pluto

Post Number: 622
Registered: Sep-06
I think TP's are built INTO a satellite:
http://web.ew.usna.edu/~bruninga/pcsat3.html


Gold Member
Username: Crazy_greek

Post Number: 1166
Registered: Jul-06

zulu
Very interesting but, not what Iam looking for.
This website is about a very small Amateur Satellite with two to four flex wip UHF, VHF Antennas. Thanks much for your time.I will keep looking, it has to be out there.

BTW wouldn't you think that the TPs be located outside in order to receive the uplink signals.
Just like a repeater tower.


Platinum Member
Username: Lklives

Post Number: 12327
Registered: Jan-06
Our own bodies have transponders, to send signals/electrons to our nervous and other systems..and they are inside...LOL


Gold Member
Username: Nikk

Post Number: 2324
Registered: Sep-06

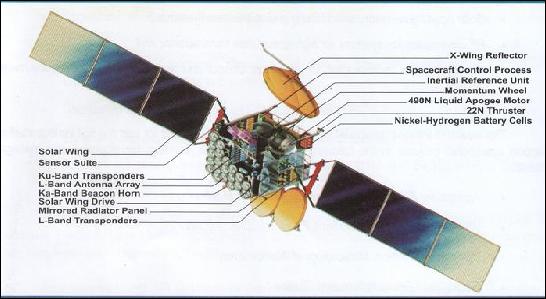

Upload


Gold Member
Username: Crazy_greek

Post Number: 1171
Registered: Jul-06

Hey, Nikk
Very nice, it's hard too see but it looks like the TPs are all group together.The rest of the bottom looks like octopus legs.

BTW check the thread "zulu"


Silver Member
Username: Runnerguy

Pluto

Post Number: 626
Registered: Sep-06
Nice pic Nikk.....Transponder by definition:
Transponder
A combination receiver, frequency converter, and transmitter package, physically part of a communications satellite. Transponders have a typical output of five to ten watts, operate over a frequency band with a 36 to 72 megahertz bandwidth in the L, C, Ku, and sometimes Ka Bands or in effect typically in the microwave spectrum, except for mobile satellite communications. Communications satellites typically have between 12 and 24 onboard transponders although the INTELSAT VI at the extreme end has 50.


Gold Member
Username: Nikk

Post Number: 2329
Registered: Sep-06
Here is a nice and simple explanation about TP's..

http://www.jsati.com/why-satellite-how-Spacesegment4.asp


Bronze Member
Username: North_of_ontario

Post Number: 35
Registered: Sep-07
Upload
