Pioneer PDR-W839 Disc Changer Jam

Karl H Nakagawa New member Username: Khnakagawa Post Number: 1 Registered: May-07	Posted on Monday, May 07, 2007 - 23:58 GMT Hey Everyone!!! I'm a newbie to the forum and am having a problem with a jammed disc changer on my Pioneer PDR-W839 cd recorder/player. The 3-disc changer is empty and I'm not able to open it using any of the 3 tray buttons..it just clatters away and tries to open with no success..then finally gives me an E2 error code on the display. Anyone out there in audiophile-land have any experience with this particular problem and know of a self-fix..or am I doomed to taking it to a local repair shop here in Honolulu Hawaii or sending it to a service center? Any advice to guide me would be greatly appreciated. Thanks for lending an ear and taking the time to reply!
C. R. Dunbar New member Username: Butchreg Greenwell Springs, LA U.S. Post Number: 1 Registered: May-07	Posted on Sunday, May 27, 2007 - 18:31 GMT I am having the same problem with my PDR-W839. Have you come up with a solution or fix for this problem? regd@bellsouth.net
Karl H Nakagawa New member Username: Khnakagawa Post Number: 2 Registered: May-07	Posted on Monday, May 28, 2007 - 21:09 GMT Hey CR: Bummer huh? No solution yet..though someone did suggest I look for a pinhole and insert a pin while unit is powered-on to reset it..but I have yet to find any pinhole anywhere on the exterior. I'll post any additional info on this suggestion when I receive it. In the meantime..good luck with your 839.
Karl H Nakagawa New member Username: Khnakagawa Post Number: 3 Registered: May-07	Posted on Thursday, May 31, 2007 - 20:17 GMT Hey CR: Received more detailed info on possible fix to our PDR-W839 changer problem which goes like this "look for a pinhole in the area of the CD tray to insert a pin..similar to the same pinhole you see on a PC's cd player to eject the tray manually. If there is none, then try this: Open the cover and find the motor that, when turning, performs the tray ejection. Then, turn that motor by hand until the entire tray (or cartridge) is ejected. Then power up and observe the events." This is word-for-word exactly as given to me. I still don't see any pinhole on my unit's exterior and I did remove the cover once to look around inside and don't recall seeing any motor(s) accessible by hand without removing the cd changer assembly. I guess this suggestion sorta gives us an idea of what to try as a possible solution..with no guarantee (of course) it'll work..and depends on whether or not you feel up to doing a bit of disassembly on your unit. I'm not sure if I wanna try that myself..and won't have time until the weekend anyway..so in the meantime I'll leave it up to you to try if you like. If you do and it works..can you post and advise exactly what you did? Take care and good luck! Regards: Karl
sam moody New member Username: Clockworkdoorbell Post Number: 1 Registered: Jun-07	Posted on Saturday, June 16, 2007 - 12:09 GMT I've just fixed this problem on a mchine - it's very simple. Take the cover off the unit and then look at the left-hand side of the machanism (as viewed from the front of the unit). There's a tower of four cogs under a white plastic snap-on cover. The shaft they're on is supposed to go up&down to select one of the three trays, but on our mech. the funny-shaped wheel had popped off it's fork-shaped thingy. You just have to pop the white cover off & rearrange things... See photo
Romane Bullette New member Username: Romane75 Post Number: 1 Registered: Nov-07	Posted on Thursday, November 29, 2007 - 15:13 GMT Dear Sam Moody, I have the same problem on my PDR W739 but I can't understand exactly how to fix the problem with your last email... Could you please explain me more precisely (sorry, I am French ;)) Regards Venceslas
Monica Ferguson New member Username: Scotlscowgirl Post Number: 1 Registered: Jan-16	Posted on Monday, January 04, 2016 - 19:04 GMT This worked for me. Take black outside cover off with screws on side and rear (4 black on side) 3 copper on rear. The white bit takes a bit of force to pop off with a flat headed screwdriver. Once the cogs are in the right place in the black frame. Make sure black frame is engaged with the large white cog to the right of the spindle. Put the plastic back on and then the cover.

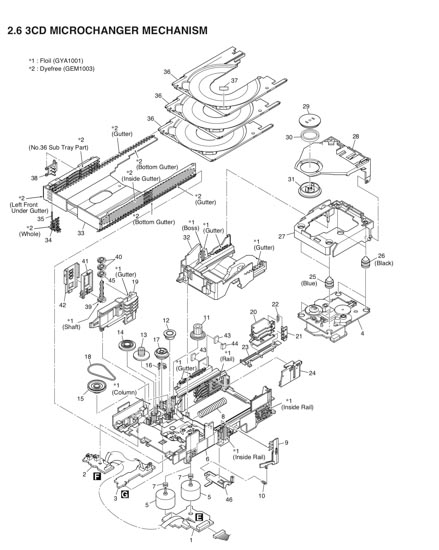

Andres New member Username: Andres73 Post Number: 1 Registered: Jul-19	Posted on Monday, July 01, 2019 - 02:33 GMT I had the same problem as the trays that were not synchronized and when trying to open the trays, they got stuck and showed me an E2 error, but yesterday I solved this problem with the help of the pioneer 839 service manual, I saw the explanation of up with the special wheel in a funny way, but everything was fine with the wheel, then I noticed that the trays were desynchronized, I returned all the trays to their initial position and then I put the charger (CD changer) in its initial position, try this but I did not solve the problem, but the trays already opened, again I returned everything to the initial position fixing that the CD player did not move according to the trays, there I noticed that a piece had been released, I put it with great care and that is like a very small spring and Wonder, everything works ok now, here in the image is the piece that is committed from number 20 to 23, and the spring and the piece that had been released from its location was number 2 1 and 22
