Relay wiring
|

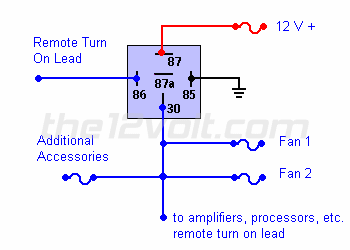

Silver Member Username: MystrePemberville, Ohio USA Post Number: 329 Registered: Sep-05 | Okay, I get the jist of this diagram. My question is which of these wires hook up to the positive and negative of the fans, etc.?
Does it go like this?: http://i161.photobucket.com/albums/t227/nyoc2020/addremacc2.jpg |
|
|
Gold Member Username: Van_manBoston South, MA Post Number: 5342 Registered: Mar-06 | yes | |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 8185 Registered: Mar-04 | Yes, use output from Pin30 for the fans + side. Also, fuse the Pin87 input. The fans - input can just be grounded anywhere on the vehicles body/chassis. |
|
|
Gold Member Username: Gcs8Atlanta, Ga Post Number: 1129 Registered: Sep-09 | or you can make a ground point on the amp rack you are using and ground every thing together and make it ezier to remove the amp rack. | |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 8187 Registered: Mar-04 | That would work too, say like a buss-bar or a dedicated battery. | |
|
Silver Member Username: MystrePemberville, Ohio USA Post Number: 330 Registered: Sep-05 | Okay, thanks so ever much! |
