Sean and Other Box builders need a new Design



Lil young Big smalls Dr cool kid
Gold Member
Username: Killerzracing71

Post Number: 2306
Registered: Aug-05
Posted on
I have a max of 47 x 47 x 20 LWH

Im trying to get about 12 cubes 32 hz

I have 2 18s

Someone help me Im trying to get this done this wknd

Thanks Sean you helped me first


¤Jack_k飣iñgoñ¤
Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 5691
Registered: Nov-05
Posted on

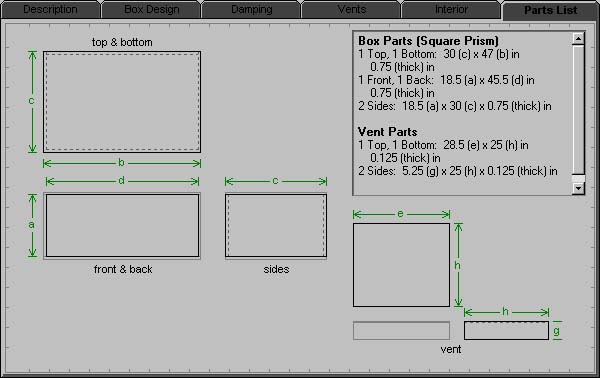

Upload


Dimensions: 20(h)x47(w)x30(d)

Vb = 11.76 cu.ft
Fb = 31.73 Hz
Fill = minimal
No. of Vents = 1
Vent shape = rectangle
Vent ends = one flush
Hv = 5 in
Wv = 28.5 in
Lv = 25 in


¤Jack_k飣iñgoñ¤
Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 5692
Registered: Nov-05
Posted on
Just noticed the drawing is odd.. Basically for the port just make it 28.5 x 25 .. basic slot port along the bottom of the box

There is no port sides .. the sides are the actual sides of the box :-)


¤Jack_k飣iñgoñ¤
Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 5703
Registered: Nov-05
Posted on
come on killerz..


Lil young Big smalls Dr cool kid
Gold Member
Username: Killerzracing71

Post Number: 2308
Registered: Aug-05
Posted on
LOl thanks Jack,

Whats the Come on Killerz for LOL?


¤Jack_k飣iñgoñ¤
Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 5705
Registered: Nov-05
Posted on
thats your user id


Snow
Gold Member
Username: Snowball123

West Allis, WI

Post Number: 1426
Registered: Oct-07
Posted on
come on killerz..


¤Jack_k飣iñgoñ¤
Gold Member
Username: Frkkevin

Team DLSSuperNatural...

Post Number: 5707
Registered: Nov-05
Posted on
LOL


Lucas R
Silver Member
Username: Evildoughboy08

Toledo, OH US and A

Post Number: 219
Registered: Jun-08
Posted on
SQ= something that accurately reproduces the original recording. To achieve this, the sub system's design must include things like input power, of course its enclosure (size/type/alignment/positioning/etc), and the rest of the system it is to be paired with. You can make a decent subwoofer sound very good if you attack all the variables with equal thought.


Lil young Big smalls Dr cool kid
Gold Member
Username: Killerzracing71

Post Number: 2309
Registered: Aug-05
Posted on
Lucas R what the Hell are you talking about?
