141.0db with 1 alpine typer 12"
|

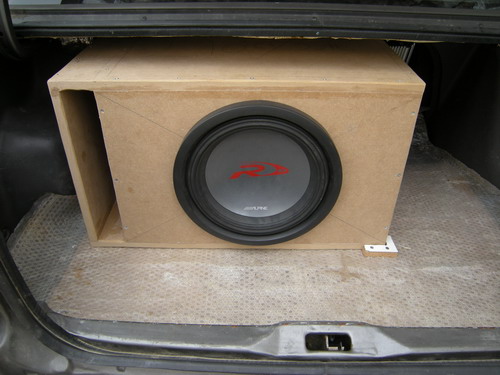

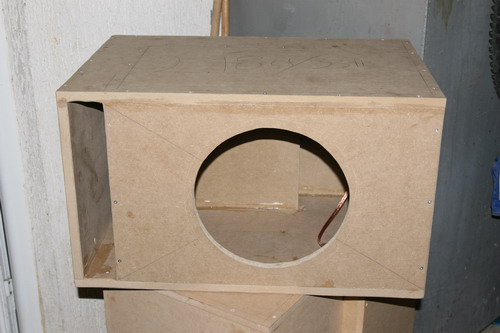

Silver Member Username: PaogrAthensGreece Post Number: 180 Registered: Dec-05 | A week ago i built a new box for my Alpine Typer 1222D. Previously i had a 2cf box at 32Hz with 33sq inches port area and i had done 139.9db at 39Hz. The new box is 2.2cf at 33Hz with 35sq inches port area. With this box i did 141.0db at 42Hz! Here are some pictures:      and a video... http://s389.photobucket.com/albums/oo339/tsatasos/?action=view¤t=1.flv My amp is this one: http://ampguts.realmofexcursion.com/SinusLive_SL_A-1500/ The sub is wired at 1ohm. I'm very happy with the result.  |
|
Gold Member Username: Talon01Team Revolution , Pa Usa Post Number: 1593 Registered: Jun-07 | not a bad score sir. here's a hint for you round your corners on the back wall and the port |
|
Gold Member Username: Surferdude9371Get loud or go home.... Post Number: 1239 Registered: Mar-07 | impressive score great job |
|
Gold Member Username: SouthernrebelMonroe, Louisiana 3 DD3515s, 2... Post Number: 6763 Registered: Mar-04 | Nice. Try 2.25cuft w/ a 35sq inch port ~16-18" long. |
|
Gold Member Username: Hittin1Lake Charles, La. United States Post Number: 1254 Registered: May-07 | not bad for a single Type-r. Congrats |
|
Gold Member Username: Mike_16Reedsburg, Wisconsin Us Post Number: 1067 Registered: Aug-06 | hell yea thats not bad for a single twelve |
|
Silver Member Username: DuckaShelby Township, MI United States Post Number: 443 Registered: Jan-08 | nice score |
|
Silver Member Username: PaogrAthensGreece Post Number: 181 Registered: Dec-05 | Thank you all guys! If i get another bigger sub (e.g. AA Havoc 12), with the same box/amp, will I get a better score? What do you think? |
|
Gold Member Username: Mike_16Reedsburg, Wisconsin Us Post Number: 1069 Registered: Aug-06 | im thinking yes. i got a ? wear did u get your amp |
|
Platinum Member Username: Rovin1 15 = 149.5 DBsTrinidad & T... Post Number: 14153 Registered: Jul-05 | '''''not bad for a single Type-r. Congrats'''' agreed ! - 2 wks ago in my country a guy did 144.4 with 2 of these 12s so ur score is about right .... |
|
Silver Member Username: CozcePost Number: 261 Registered: Mar-08 | I'd be happy with that score lol |
|
Silver Member Username: PaogrAthensGreece Post Number: 182 Registered: Dec-05 | "im thinking yes. i got a ? wear did u get your amp" From Germany. In my country (Greece) it cost 500¤. In Germany it is at only 200¤!! Very good amp for the money. |
|
Gold Member Username: JoebruceTC Sounds/DLS Post Number: 2394 Registered: May-04 | Nice score man! |
|
New member Username: TooloudforyouPost Number: 5 Registered: Aug-08 | thats pretty impressive out of a trunk car... you couldve gotten it louder with a few tricks....but nun the less great job!!!! |
|
Gold Member Username: Tatonka-[Team Audible Insanity]- Post Number: 2246 Registered: Mar-07 | Nice score man. You will be surprised how much louder you will get with a little more work. |
|
Platinum Member Username: InsearchofbassPost Number: 10512 Registered: Jun-04 | Congrats thats a good score for a trunk car. |
|
Gold Member Username: Van_manBoston South, MA Post Number: 4293 Registered: Mar-06 | yea, that is a nice score from the trunk. Im Jelouse. |
|
Gold Member Username: SomedonniedudeIllinois United States Post Number: 1992 Registered: May-07 | Nice job! Hows the sq compared to the last box? |
|
Silver Member Username: Evildoughboy08Toledo, OH US and A Post Number: 166 Registered: Jun-08 | what are your exterior dimensions and port dimensions for that box? im thinking of getting 2 type R 12s and i might just use this box setup |
|
Silver Member Username: PaogrAthensGreece Post Number: 183 Registered: Dec-05 | The previosly box was just a little better in the lows, but it was obviously worse in the higher freq. The box i have now i think is perfect for lows and high freqs. Here is the box plan:  I forgot to tell you that i also did 137.3db @ 35Hz and 133.0db @ 30Hz with this box. I think these are good numbers (the subsonic filter is set to 28Hz) |
|
Gold Member Username: BernymacCambodia Post Number: 4286 Registered: Sep-04 | very nice bro, good score. |
