Lowlife....Gus, your box
|

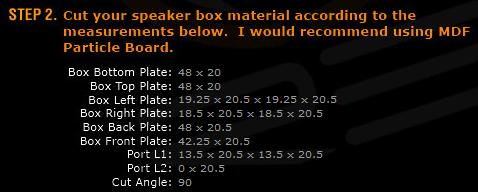

Diamond Member Username: BestmankindPost Number: 21153 Registered: Oct-05 | ok with the dimensions you gave me, you can make a box this size. 8.865 cuft with 102.5 sq inches of port area. it will be tuned to around 32hz. since we have a lot of volume to work with, your box is able to achieve the desired tuning frequency without the L bend. no L bend = less turbulance.  you car will be so fricking loud and clean i can't wait to hear it. 2 re xxx 15s with 2 rd audio 1750.1. man just thinking about it is giving me a woody. DAYAM!!!    |
|
Diamond Member Username: BestmankindPost Number: 21154 Registered: Oct-05 | once the box is built and put in to place, you can listen to it. then on another day, we will.... 1. use spray foam deadener to fill in the gap between the box and the car. 2. once the deadener hardens, we will resin it with resin mat. 3. once the resin cures, sand it and make it smooth. 4. use body filler for any imperfections. 5. sand it again and paint it or cover it with vinyl. your car will look sick after that. |
|

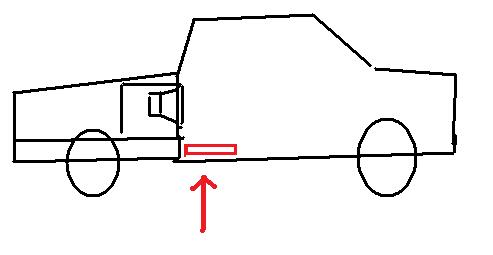

Diamond Member Username: BestmankindPost Number: 21155 Registered: Oct-05 | also later we can make a sick looking amp rack and place it like in the pic below.  |
|
Gold Member Username: Philly306James Carrol is the re... Post Number: 1113 Registered: Apr-07 | lol nice pic chad. lowlife get this install done now. i want vids |
|
Gold Member Username: InsearchofbassPost Number: 9433 Registered: Jun-04 | wow you need that much airspace for those subs |
|
Diamond Member Username: BestmankindPost Number: 21156 Registered: Oct-05 | we could make it smaller sean but 4.3cuft per sub is cool. |
|
Gold Member Username: InsearchofbassPost Number: 9438 Registered: Jun-04 | ok |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2187 Registered: Feb-05 | wow thank you chad. i was thinking of the amp rack behind the seats? but your idea works too. What the diff with port in the middle or one port? |
|
Diamond Member Username: BestmankindPost Number: 21157 Registered: Oct-05 | not sure about difference but i was thinking of putting the port on the driver side. we can do middle too if you like. its just if we do the port along side one of the walls, its easier to add length to it if you want it lower tuned. |
|

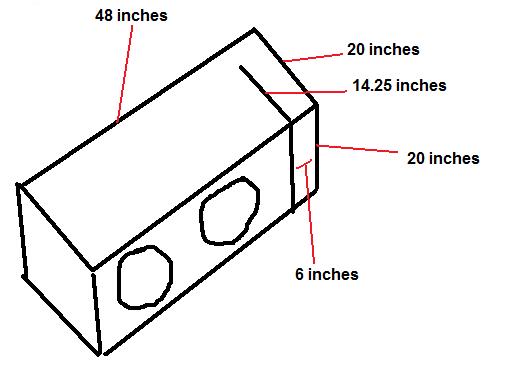

Diamond Member Username: BestmankindPost Number: 21158 Registered: Oct-05 | ok after sean's comment, i got to thinking. i think we are getting too greedy with the volume of the box. so i decided it should be a tad smaller. it comes out to 8 cuft. with the driver displacement it will be a bit smaller than that. i think it would be better like this. as you can see, i shaved off 2 inches from the height.  |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2188 Registered: Feb-05 | Chad does this look right? |
|
Diamond Member Username: BestmankindPost Number: 21162 Registered: Oct-05 |  |
|
Silver Member Username: Phil_salisburyPost Number: 687 Registered: Sep-06 | Gus, didn't want me to do the design? |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4068 Registered: Dec-06 | You named his box Gus? |
|
Diamond Member Username: BestmankindPost Number: 21164 Registered: Oct-05 | lol lowlife's real name is gus. btw brad where the F were you? i didn't stay in chat too long cause you weren't there. |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2189 Registered: Feb-05 | No Phil i had asked Chad but that was like two months ago. he replied yesterday saying he would have it ready for today. Thank you Phil. Okay going to get everything cut by this weekend. |
|
Diamond Member Username: BestmankindPost Number: 21165 Registered: Oct-05 | when you get it cut, remember the thickness of the mdf is .75 inch. |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4069 Registered: Dec-06 | Chad I was in the studio pretty much all night. |
|
Diamond Member Username: BestmankindPost Number: 21166 Registered: Oct-05 | nice. that explains it. |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2190 Registered: Feb-05 | Should i make it double or single? |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4071 Registered: Dec-06 | At least double. |
|
Diamond Member Username: BestmankindPost Number: 21167 Registered: Oct-05 | double baffle all around and possibly triple front? |
|
Gold Member Username: JtownTexas Post Number: 2952 Registered: Mar-07 | the amp rack is nice.. |
|
Gold Member Username: FrkkevinTeam DLSSuperNatural... Post Number: 5195 Registered: Nov-05 | nice drawings |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2192 Registered: Feb-05 | Should i make it double or single? |
|
Diamond Member Username: BestmankindPost Number: 21169 Registered: Oct-05 | double. |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2193 Registered: Feb-05 | Sorry Chad i hadn't refresh my page. How close are you to Olympic and los angles |
|
Diamond Member Username: BestmankindPost Number: 21170 Registered: Oct-05 | i am about 5 minutes walking distance from there. as you can see from this map i am not that far away.  |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4072 Registered: Dec-06 | I wouldn't be walking to often through that area if I were you Chad lol. |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2194 Registered: Feb-05 | I was wondering how close you were to the fires. |
|
Diamond Member Username: BestmankindPost Number: 21171 Registered: Oct-05 | brad you really need to come out here and take a look. its all cleaned up and its all businesses here. but i don't live here so its cool. oh yeah the fire. yeah it was pretty damn close. |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4073 Registered: Dec-06 | http://abclocal.go.com/kabc/story?section=news/local&id=6053090 |
|
Diamond Member Username: BestmankindPost Number: 21172 Registered: Oct-05 | thats no where near my work. lol. also no where near where i live. hahaha. but yeah east los angeles is crazy. |
|
Gold Member Username: Loc_outSOCAL2 RE 15 XXX Post Number: 2195 Registered: Feb-05 | Downtown and east los are two diff worlds. Norwalk is like beverly hills |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4074 Registered: Dec-06 | I didn't realize Olympic was so long. |
|
Diamond Member Username: BestmankindPost Number: 21173 Registered: Oct-05 | lol yeah. it goes all the way to west hollywood. btw brad, i am just searching remastered music that is ripped in flac format now. lol. i found boston, metallica (justice for all), and metallica (ride the lightening). i love flac format. |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4075 Registered: Dec-06 | FLAC rules. See you in chat at 6:00PM  Lakers FTW in six. |
|
Diamond Member Username: BestmankindPost Number: 21174 Registered: Oct-05 | i won't be in chat til the game is over. |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 4076 Registered: Dec-06 | That's why the |
