The worlds biggest noob ?



Benjamin Lukas Kennedy
Silver Member
Username: Deadrabit

Post Number: 359
Registered: Jun-07
Posted on
my sub has terminals on 2 sides. so it has 2 neg and 2 pos places to put the wire.
i have it wired to my amp at 1 ohm and the wire just goes to a pos and a neg on the sub.
should i have wire going to neg to neg and pos to pos on the sub too?


[...Rovin...]
Platinum Member
Username: Rovin

1 15 = 149.1DBsTrinidad & T...

Post Number: 13618
Registered: Jul-05
Posted on
ur sub is dual 2ohms ?

if yes & u want it @ 1ohm then connect the 2+ together & same with the 2_ & then connect to ur amp ....


Benjamin Lukas Kennedy
Silver Member
Username: Deadrabit

Post Number: 360
Registered: Jun-07
Posted on
yes its dual ohms.... so r u telling me that this whole time i have had this set up wrong?!


[...Rovin...]
Platinum Member
Username: Rovin

1 15 = 149.1DBsTrinidad & T...

Post Number: 13619
Registered: Jul-05
Posted on

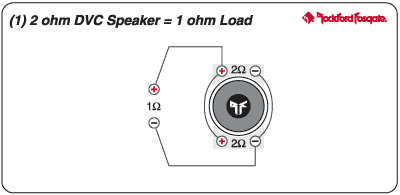

well basically this is what u do :

Upload

.....


97 Jeep TJ
Silver Member
Username: Mesodumm

Tri-City, Az Usa

Post Number: 464
Registered: Apr-07
Posted on
How do you know it dual 2 ohm? it could be dual 4 ohm? Just because he thinks it's wired at 1 ohm doesn't mean it is! Did you use a ohm meter?? to see what it is?? What is the model # of your sub??? That would make it a lot easier!! Thx p.s. i'm not trying to be dickish. It's late, I'm tired! sorry!


Andrew Capps
Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 2466
Registered: Mar-06
Posted on
if that sub is a DVC 2 or 4 ohm, wire it just like that pic rovin posted. If its a 4, the amp will see a 2 ohm load if its a 2, the amp will see 1 ohm


Benjamin Lukas Kennedy
Silver Member
Username: Deadrabit

Post Number: 361
Registered: Jun-07
Posted on
its an 18 inch BL.

2 ohm i am pretty sure.
it has to be 1 or 2 ohm.
how can i tell?
so what is mine wired to now????


Reece Brassler
Gold Member
Username: Denali_on_22s

I get Bucks like Milwa...

Post Number: 5543
Registered: Feb-06
Posted on
do you only have 1 VC wired up?








Benjamin Lukas Kennedy
Silver Member
Username: Deadrabit

Post Number: 362
Registered: Jun-07
Posted on
i had only 1 VC wired up.
i got it togather right now.
i went from 142 to 145 db.
that was my problem the whole time!


John Jay
New member
Username: 4realadeala

Tampa, Florida

Post Number: 10
Registered: Mar-08
Posted on
By chance, are you using a walmart Boom Stick to get your reading? I thought about getting one, but the damn thing was too expensive.


Benjamin Lukas Kennedy
Silver Member
Username: Deadrabit

Post Number: 363
Registered: Jun-07
Posted on
no i have not seen them.
i just go to th local car audio place down town. what they have is nothing fancy but it gives me number to go off of


Andrew Capps
Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 2470
Registered: Mar-06
Posted on
the wal mart thing is sh!t. it is so off and varies from one day to another. no need to waste your money.


Stavenmist316
Gold Member
Username: Big_edge_head

Milwaukee, Wisconsin

Post Number: 2002
Registered: Mar-07
Posted on
i have one of the boom sticks lol. it was like 10 bucks at the time so i picked one up lol they are very inaccurate thats forsure


[...Rovin...]
Platinum Member
Username: Rovin

1 15 = 149.1DBsTrinidad & T...

Post Number: 13632
Registered: Jul-05
Posted on
wow - 1 coil hooked up all the time ...thats like u had only 1 nut in ur sack working .....


John Jay
Bronze Member
Username: 4realadeala

Tampa, Florida

Post Number: 18
Registered: Mar-08
Posted on
On a serious note, I believe that one teste is just filling space while the other one does all the work.
