Box Design
|
Silver Member Username: EvoixmrPost Number: 210 Registered: Aug-07 | Can someone please help me out w/ a ported box design for a 12" Q. Box can be up to 15" tall and 33" wide, its going to be in a trunk so should I put the sub firing up and port to rear? Whats a good box volume and tuning, I want spl and lows. Thanks for any help. Heres a link for specs, its the 12" D2 https://ssl.perfora.net/www.ficaraudio.com/sess/utn;jsessionid=1547c65bb49571d/shopdata/0020_Q/product_overview.shopscript |
|
Gold Member Username: Van_manBoston South, MA Post Number: 3541 Registered: Mar-06 | Would you please post the specs here. I feel kinda wary clicking a link from a guy named virus. No offence. Did you try subwoofertoolsdotcom? |
|
Silver Member Username: EvoixmrPost Number: 211 Registered: Aug-07 | "I feel kinda wary clicking a link from a guy named virus. No offence." haha, none taken, just a nickname. "Did you try subwoofertoolsdotcom?" Yes, the box I have the Q in now is from the design that subwoofertools gave me. Just wanted to build a box that was focused a little more on spl. I tried using winISD and BB6P but windows vista doesn't support the help section so I'm not sure how to enter the info in the right way. Heres the subs specs: Fs 27.1Hz Re 1.4 Ohms/coil Qms 5.63 Qes .48 Qts .44 Mms 231g Cms 0.15mm/N Sd 481cm^2 Vas 48.3 l Spl 84.8dB 1W/1m Bl 15.1 N/A Xmax27mm Rms 1000W Mounting depth 7" Displacement 0.16cuft If any additional info is needed let me know |
|
Silver Member Username: EvoixmrPost Number: 212 Registered: Aug-07 | Also heres the current box I have. http://www.subwoofertools.com/forum/ported-box.asp?Ew=33&Eh=16&Dia=6&Xmax=27&Vd= .16&NumW=1&Vb=2.2&Fb=30&Qts=&Vas=&Fs=&CE=0 Is it possible to design a box with a straight port or L port instead of running the port back and forth? I'm thinking a box somewhere between 2.2cuft@30Hz and 2.6cuft@34Hz would be good. |
|
Gold Member Username: •cam•BC Canada Post Number: 2098 Registered: Nov-06 | 'Tis. Less bends is a good thing. |
|
Silver Member Username: EvoixmrPost Number: 214 Registered: Aug-07 | Exactly, so I need a box at 2.2cuft@30Hz or 2.6Hz@34Hz w/ a straight port? I just need someone to help sketch one up for me cuz I'm not to good w/ that sh!t |
|
Silver Member Username: EvoixmrPost Number: 225 Registered: Aug-07 | bump |
|
Silver Member Username: EvoixmrPost Number: 228 Registered: Aug-07 | Would this box be better than the one I have now if I changed it around a little. Maybe wider port and run it along the side and back like an L. Could someone draw this up for me? |
|
Silver Member Username: EvoixmrPost Number: 229 Registered: Aug-07 | sorry heres the box "http://www.subwoofertools.com/forum/ported-box.asp?Ew=33&Eh=15&Dia=6&Xmax=27&Vd= .16&NumW=1&Vb=2.5&Fb=33&Qts=&Vas=&Fs=&CE=0" |
|

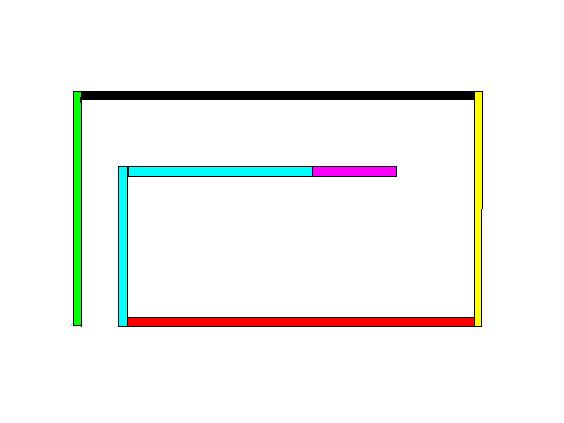

Gold Member Username: Van_manBoston South, MA Post Number: 3553 Registered: Mar-06 |  |
|
Silver Member Username: EvoixmrPost Number: 231 Registered: Aug-07 | Marc thanks for the layout so is the port supposed to be wider in the back then the side? And all the panels are the same length as the box I posted? How wide is the port? |
|
Silver Member Username: EvoixmrPost Number: 232 Registered: Aug-07 | also would I need to make the purple peice longer to make up for taking the space from the bends out. and if I made it longer would I have to increase total box volume. |
|
Gold Member Username: Van_manBoston South, MA Post Number: 3554 Registered: Mar-06 | honestly, I dont know. I just cut and pasted to the end. Did you try rd box site? http://www.reaudio.com/speaker_box/LPort_Box_Calc.html |
