Box for eclipse TI



Silver Member
Username: Mateo

Post Number: 168
Registered: Oct-05
im jsut curious as to how big i should make it...i was thinking around 2.3-2.8...its a 12" and im looking for spl mostly...any help would be greatly appreciated


Silver Member
Username: Mateo

Post Number: 169
Registered: Oct-05
bump


Silver Member
Username: Mateo

Post Number: 170
Registered: Oct-05
didnt ump


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 4935
Registered: Apr-06
2 cubes
60 sq inches of port
tuned to 42hz


Silver Member
Username: Mateo

Post Number: 171
Registered: Oct-05
alright thanks...i was thinking 2.5 but very open to suggestions...i think i may tune it a little lower to about 32~33 because that is what my G5s are tuned to now and i love it...but you think 2 cubes would be alright to hit some lows and all? i want as much spl as i can get from it...


Gold Member
Username: •cam•

BC Canada

Post Number: 1310
Registered: Nov-06
Driving's specs may sound good in his car, but they won't necessarily be good in yours. I'd do what you want. Maybe build an interchangeable port and you can play with the volume by putting phone books in the box. External ports would make it easier.


Silver Member
Username: Mateo

Post Number: 173
Registered: Oct-05
wait..who are you talking bout in different car? haha im the same person with the G5s and the Titanium haha...but the whoe interchaneable ports > me...i could probably pull it off but i wont be in any comps....this is just a daily bumper


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 4943
Registered: Apr-06
CAM, well i figured he wanted SPL to the max lol...
but if its daily just do this mateo

2.25 tuned to 35 hz and 60 sq inches of port...

2.25 after displacement of port and driver. makes sure to take that into effect.


Silver Member
Username: Mateo

Post Number: 175
Registered: Oct-05
is 60 not to much...isnt it like 14-15 sq inches per cuft? or am i wrong?


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 4959
Registered: Apr-06
most people say its too much...then again most have built as many boxes as i have.
trust me its enough if you want i can post a design for you?


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 4960
Registered: Apr-06

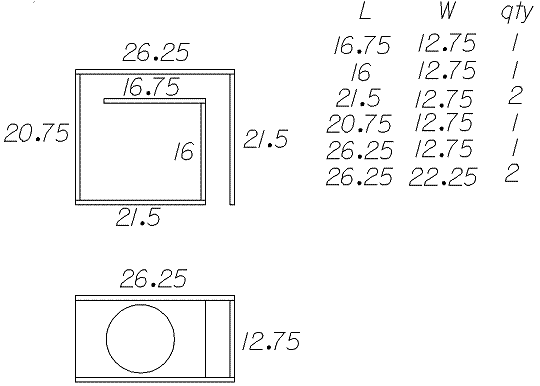

2.25 cubes 34 hz 50 sq inches
Upload


Silver Member
Username: Mateo

Post Number: 177
Registered: Oct-05
sweet thats awesome man...i appreciate that...i trust you i was just wondering...is there anyway to make it a bit taller so that ? if not its still fine ill use it...its just a little pet peeve of mine :-) thanks again


Silver Member
Username: Mateo

Post Number: 178
Registered: Oct-05
oops it left a part out..what i meant was is there a way to make it a bit taller so it doesnt look like the sub is stuffed in there....if not its cool...


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 4965
Registered: Apr-06
you have enough room =P


Silver Member
Username: Mateo

Post Number: 179
Registered: Oct-05
i love it though...i love big ports like that


Gold Member
Username: Drivingreckless

DD 9515f, 148.2 db Mov...

Post Number: 4968
Registered: Apr-06
youll love how it sounds ;-)


Silver Member
Username: Mateo

Post Number: 180
Registered: Oct-05
ok...ill have to stand it up though so it fits in the back of the cab haha...thanks you!


Silver Member
Username: Mateo

Post Number: 181
Registered: Oct-05
haha im sure...ive only made a handfull of ported boxes and they have turned out pertty nicly...but i jsut wanted to make sure i did this one right...not that i didnt try on the others.....
