Box Plans for 12" L7.....
|
Silver Member Username: Vc23Ascendant Audio, 15 Havoc...... U.s.a Post Number: 226 Registered: Mar-06 | so this is going in the back of a jeep grand cherokee.. its for a friend but he wants some plans... 2.5 cu.ft and what would be the best tuning for an l7.... dont know... but if someone wants to input some numbers and give me a plan on that subwoofertools.com website that would be really appreciated.... |
|
Silver Member Username: Jesse59672OKLAHOMA Post Number: 816 Registered: Feb-07 | give us some dimensions like how wide or tall it can be. also what you want it tuned to. port facing up or down etc. ill help ya :P |
|
Silver Member Username: Vc23Ascendant Audio, 15 Havoc...... U.s.a Post Number: 227 Registered: Mar-06 | well he wants it 2.5 cubic feet... either 32 or 34hz.. i was thinkin either 15x20x whatever deep it has to be.... sub up port back |
|
Silver Member Username: Jesse59672OKLAHOMA Post Number: 820 Registered: Feb-07 | this is a newer l7 right? i can't seem to find the woofers displacement. i read somewhere .17 but that doesn't sound right.. also, is a: 30'' wide 15'' tall 17'' deep box going to fit? i know those jeeps have a lot of room but i was just wondering if the 30inches wide was too wide to fit in the back |
|

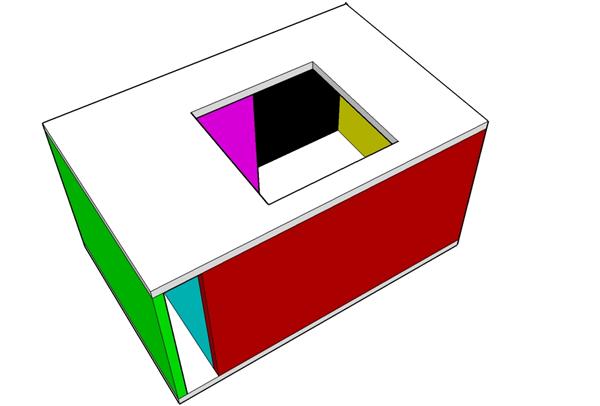

Silver Member Username: Jesse59672OKLAHOMA Post Number: 822 Registered: Feb-07 | heres what i have so far: ill upload more pics of the box finished or if you have sketchup by google ill just give you the skp file http://subwoofertools.com/forum/ported-box.asp?Ew=28&Eh=15&Dia=7&Xmax=14.1&Vd=.17&NumW=1&Vb=2.5&Fb=34&Qts=&Vas=&Fs=&CE=0  |
|

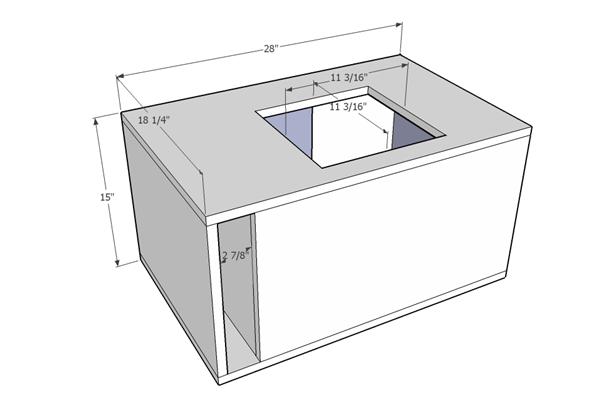

Silver Member Username: Jesse59672OKLAHOMA Post Number: 824 Registered: Feb-07 | The box is: 2.5cuft, tuned 34hz 28 wide x 15 tall x 18.25 deep Hope you like it!    |
|
Silver Member Username: Nickyp0219Post Number: 221 Registered: Jun-06 | nice work |
|
Silver Member Username: Nickyp0219Post Number: 222 Registered: Jun-06 | jesse could you do that same thing for me for a box about 1.5ft^3 tuned to 34-35hz. The max I can do is 13-14"H and 16"D, I was hoping for 23-24"W but whatever works. I have an eclipse hatch, you think I should do sub up port back? or both facing trunk? Thanks man |
|
Silver Member Username: Jesse59672OKLAHOMA Post Number: 826 Registered: Feb-07 | yeah give me a minute my girl just got home so im gonna hang out w/ her ill just post it in this thread after i do it |
|
Silver Member Username: Nickyp0219Post Number: 224 Registered: Jun-06 | Sorry I forgot to say that it is a 12" RE sx...displacement of .16ft^3 and xmax of 22mm i believe. Thanks I appreciate it, whenever you get the chance |
|
Gold Member Username: Nd4spd18Northwest PA Post Number: 4566 Registered: Jul-06 | If he didn't buy that sub already tell him not to. |
|
Silver Member Username: Jesse59672OKLAHOMA Post Number: 829 Registered: Feb-07 | nicky, are you sure those are the maximum dimensions? i cant get a good looking box with only 1.5 cuft and those dimensions. |
|
Silver Member Username: Jesse59672OKLAHOMA Post Number: 830 Registered: Feb-07 | http://subwoofertools.com/forum/ported-box.asp?Ew=24&Eh=15&Dia=6&Xmax=22&Vd=.16& NumW=1&Vb=1.5&Fb=35&Qts=&Vas=&Fs=&CE=0 see  and the box is still too big |
|
Silver Member Username: Nickyp0219Post Number: 228 Registered: Jun-06 | i know i wanted to get a box that wasnt going to take up my entire trunk but hey, its gotta be what its gotta be thanks tho |
|
Silver Member Username: Vc23Ascendant Audio, 15 Havoc...... U.s.a Post Number: 229 Registered: Mar-06 | hey man thanks alot... you really do nice work on the whole designing aspect... i will now use these plans and post a build log.... haha wont start it till a week or so |
|
Silver Member Username: Nickyp0219Post Number: 229 Registered: Jun-06 | yea let me know how that comes out vc, my friend wants to do the same thing with his l7, can get some help with those pics. |
|
Gold Member Username: InsearchofbassPost Number: 7377 Registered: Jun-04 | "I have an eclipse hatch, you think I should do sub up port back? or both facing trunk? Thanks man" if its anything like my buddies old integra hatch sub up port up should work well....he hit 142 db in a daily box tuned to 38 hz with a volfenhag 4812 on about 900 rms |
|
Silver Member Username: Nickyp0219Post Number: 230 Registered: Jun-06 | really i had an integra hatch as my first car, it is pretty similar actually. practically the same..did he have the piece that clips on to hide the trunk? |
|
Gold Member Username: InsearchofbassPost Number: 7379 Registered: Jun-04 | no |
|
Gold Member Username: MgbcsLincoln, Nebraska Post Number: 1821 Registered: Dec-06 | I had a 12" L7 in a 2.5cuft @ 32hz. It sounded very good for an L7...JMO |
|
Gold Member Username: BasssquaredKansas Post Number: 1685 Registered: Nov-06 | i had mine tuned to 38 hz and loved them but they did lack sq now i'm gonna go another route and try out and RE SX and see how bad the L7s sq really is compared to other subs |
