How do u do this?
|
Silver Member Username: Cplaya280Quakertown, PA USA Post Number: 761 Registered: Oct-05 | so i just bought the new HDC315 and im going to power it with my kicker zx1000.1 which is 2ohm stable. So how would i wiring the sub then? im confused any help would be great even pics. thanks again guys. |
|
Silver Member Username: Cplaya280Quakertown, PA USA Post Number: 762 Registered: Oct-05 | o yea n i got the D1 impedance. |
|

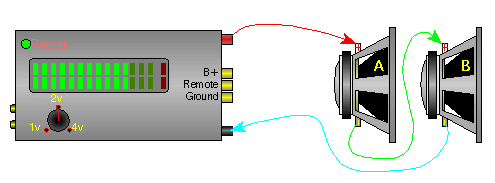

Gold Member Username: Nd4spd18Northwest PA Post Number: 4054 Registered: Jul-06 | Wire the coils in series. Wire one coil's + to the other ones -, leaving you with one + and one - that you will wire to the amp.  |
|
Silver Member Username: Cplaya280Quakertown, PA USA Post Number: 763 Registered: Oct-05 | i asked the guy from audioque and he said just wire it parallel to acheive the 2ohm load. |
|
Gold Member Username: SouthernrebelMonroe, Louisiana 2 DD3515s, 2... Post Number: 5512 Registered: Mar-04 | NO!!! Do not wire it Parallel! That will give you a 1/2ohm load. Wire it in SERIES!!! |
|
Silver Member Username: Cplaya280Quakertown, PA USA Post Number: 764 Registered: Oct-05 | really why did the guy from audioque tell me parallel then? i want 2ohm stable for my amp and i will only be having one sub |
|
Gold Member Username: JkidderGunshine , State Flawda Post Number: 2647 Registered: Nov-05 | i dont like to brag or anything but.......... ha |
|
Silver Member Username: SkiesTofino, British Colu... Canada Post Number: 851 Registered: Aug-05 | "i asked the guy from audioque and he said just wire it parallel to acheive the 2ohm load." Your sure he said parallel to achieve a 2 ohm load? Doesn't sound right to me, DJ got D1 and D2 coils, he can't parallel either of those to a 2 ohm load. Wire it in series, like the picture above shows. Take a multimeter and check the + and - of each coil to make sure its dual 1 ohm. It wont be exactly 1 ohm but roughly. |
|
Silver Member Username: Cplaya280Quakertown, PA USA Post Number: 765 Registered: Oct-05 | Wire the coils in parallel to achieve a 2 ohm load. -----Original Message----- From: Vanna Touch [mailto:vtouch06@yahoo.com] Sent: Saturday, November 17, 2007 4:02 PM To: Audioque.com Subject: RE: thank you, i also got a question i got the kicker zx1000.1 mono amp and i wanted to get the D1 right? how would i wire that so i would get the 2ohm load because my amp is not 1ohm thank you. |
|
Gold Member Username: Nyyfan13Fi SSD USA Post Number: 7022 Registered: Jul-06 | maybe he just made a mistake....he is human |
|
Gold Member Username: Nd4spd18Northwest PA Post Number: 4080 Registered: Jul-06 | Why is this thread still going, lol. Two 1 ohm coils wired in parallel = .5 ohm Two 1 ohm coils wired in series = 2 ohms This ain't rocket science......... |
