15" L7 box ??? .....
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12011 Registered: Jul-05 | looking for some ideas here ASAP please u all ever box build for any kicker 15L7 looks like this model  cant find much info online like its xmax & sub displacement dont want to make d box overly big because the guy's car its going into .the trunk opening is not big at all so i estimate the sides can be 16.5 x 16.5 & max length i can work with is 38-40" preferably 38" hoping to tune it 36hz for SQL - ideas any1 ??? ..... |
|
Gold Member Username: 420alldaylongPost Number: 2516 Registered: Sep-06 | Straight from Kickers website. Compact: 3cf. + displacement 2.5"x16.25" port 19.5" long SPL/Deep Bass 3.25cf. + displacement 3"x13.25" port 14.5" long |
|
Gold Member Username: 420alldaylongPost Number: 2517 Registered: Sep-06 | Thats + port displacement. |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12012 Registered: Jul-05 | thats for this particular model ? sub displacement & xmax ??? ...dunno if im not seeing it but all im seeing is the newer silver cone model only 1 response & i thought there were some kicker fans here ....  |
|
Gold Member Username: 420alldaylongPost Number: 2522 Registered: Sep-06 | What year is that?^^^^^^^^^^^^^^^^^^^^^^^ |
|

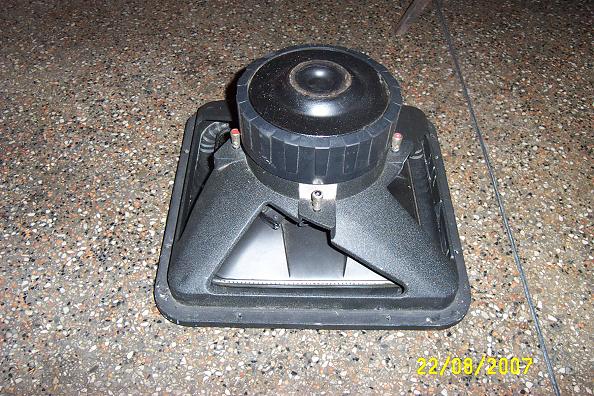

Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12013 Registered: Jul-05 | thats what i been trying to figure since i am no follower of kicker subs looks like this though this   camera batt just died so i didnt get to take pix of the cone but it looks like |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12014 Registered: Jul-05 |  .... |
|
Gold Member Username: 420alldaylongPost Number: 2526 Registered: Sep-06 | That last picture looks like the 2002 models. If am right there manual is on there site. |
|
Gold Member Username: 420alldaylongPost Number: 2528 Registered: Sep-06 | Did you find it? |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12015 Registered: Jul-05 | yes it does seem its the 2002 model & i found its xmax but no sub displacement figure ..... |
|
Gold Member Username: 420alldaylongPost Number: 2530 Registered: Sep-06 | The xmax was .64 right? |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12017 Registered: Jul-05 | hmm im seeing .6" this thread may make me look like im a newb here but all i want is just to get some ideas of what ppl's tried\tested results but i also need its displacement so i can sit & design my own sh1t here ....  |
|
Gold Member Username: AdddisorderWest palm, Florida Post Number: 5003 Registered: Jan-06 | hey rovin, i met this kid who is from T&T |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12018 Registered: Jul-05 | no sh1t ! ^^ do tell me some more ........ |
|
Gold Member Username: 420alldaylongPost Number: 2532 Registered: Sep-06 | www.kicker.com/ Technical Support on the front page T/S Parameters |
|
Gold Member Username: 420alldaylongPost Number: 2533 Registered: Sep-06 | I see Xmax .64in-1.63cm |
|
Gold Member Username: Extrmndor3Post Number: 6653 Registered: Feb-06 | rovin.... 3.5 cubic ft box tuned at 36 hz...u need to use as much port area as u can while to keep it in the 36hz zone... and with that space... 3.5 with port disaplacement is the best box for that woofer.... trust me |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12019 Registered: Jul-05 | almost bedtime & my eyes r quite tired - please post the sub displacement in cuft of the 2002 15 L7 dual 4ohms model & i will check back this thread in the morning ....... |
|
Gold Member Username: AdddisorderWest palm, Florida Post Number: 5004 Registered: Jan-06 | im taking a class with him about marine mechanics. his family lives in trinidad i guess. his last name i think is chamley or something. |
|
Gold Member Username: 420alldaylongPost Number: 2535 Registered: Sep-06 | The driver displacement is .16 cu ft. This is from Kicker. |
|
Platinum Member Username: Rovin4 10 Pioneer... Post Number: 12021 Registered: Jul-05 | cool thanks earlier today i used .15 so i wasnt far off ....ended up doing 3.8cuft after displ to fit in the guy's trunk space & started building it today so i should be done by tomorrow ..... |
