Kenwood sub PROBLEM // KFC XW
|
Silver Member Username: Night_mirageAmman, Jordan DDs dealer i... Post Number: 657 Registered: Jan-06 | I have this Sub , And its DVC 2 ohm And i know how 2 wire it , But it Wont work !!!! I wired the Red to the + AMP Black - from sub to the - AMP Them Both RED & BLACK from sub Together .. But its working VERY VERY week . And if i turn the Valume UP the AMP shutts down . The AMP is ALPINE MRD605 600w The sub 300w I droped the sub one time , IS it the Problem . ITs Not Working !!!!!! |
|
Silver Member Username: Night_mirageAmman, Jordan DDs dealer i... Post Number: 658 Registered: Jan-06 | http://www.justkenwood.co.uk/speakers01/kfcwps1202d.asp Thats it |
|
Silver Member Username: Night_mirageAmman, Jordan DDs dealer i... Post Number: 660 Registered: Jan-06 | http://www.justkenwood.co.uk/speakers01/kfcwps1202d.asp Thats it |
|
Silver Member Username: WinterfreshpimpChisago, MN America Post Number: 525 Registered: Mar-06 | so you have dual voice coils then? |
|

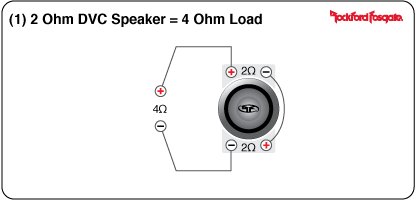

Gold Member Username: The_image_dynamicSan Diego Post Number: 2333 Registered: Dec-06 | From what you decribed you have it wired as shown below (series) which is the correct way for that Alpine amp because it puts out 300RMS @ 4 ohms or 600RMS @ 2 ohms but it is not 1 ohm stable which the sub would be if it were wired in parallel:  Verify that the subwoofer is ok using a 9 volt battery and test each coil individually to make sure that something didn't break loose when you dropped it or possibly one of the tinsel leads got snapped. |
|
Silver Member Username: Night_mirageAmman, Jordan DDs dealer i... Post Number: 661 Registered: Jan-06 | i wired it just like this / But it does n't work Yes DVC . 2 ohm HOW CAN I TEST MY VOICE COILS ?? |
