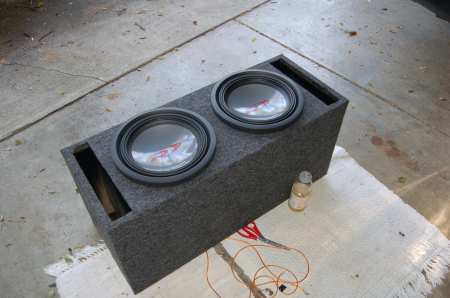

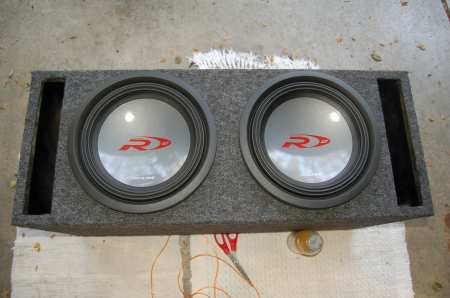

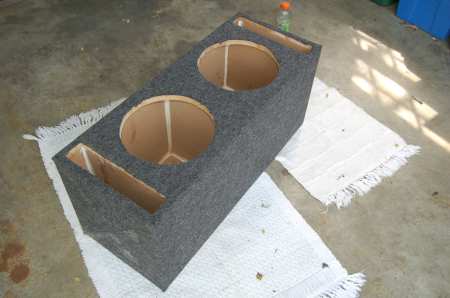

Finished Box Carpeted/Painted (PIX)



Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 303
Registered: May-06
Upload
Upload
Upload


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 304
Registered: May-06
Upload
Upload
Upload


Gold Member
Username: J_baby15

DiRtY 5oUtH ...

Post Number: 1668
Registered: Feb-06
nice job on the carpet.


Gold Member
Username: Nyyfan13

Fi SSD USA

Post Number: 4838
Registered: Jul-06

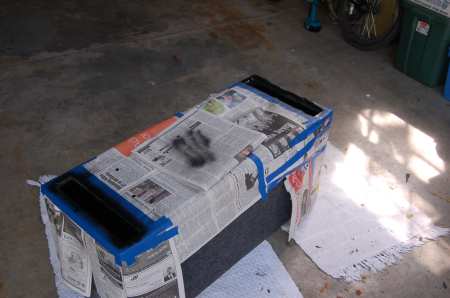

should have painted then carpeted cause itd be easier...but looks nice none the less, good work


Gold Member
Username: Tdawg30

Ohio USA

Post Number: 1115
Registered: Jun-06
looks really nice man, what are the specs on it and whats going in there????


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 305
Registered: May-06
Upload
Upload
Upload


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 306
Registered: May-06
Thanks guys. Its a 36x14x16 box and havent quite tuned the box yet, im ampless as of now and once the zx450.2 is sold i have a kx1200.1 on order then ill mess with it. Any suggestions on what I should set the frequency to? The subs are wired up to 1 ohm load ready for the incoming amp.


Gold Member
Username: Mgbcs

Lincoln, Nebraska

Post Number: 1043
Registered: Dec-06
What do you mean it's not tuned? You made the port a certain length/width/height and that's how you tune it. Or am I missing something and that wasn't your question?


Gold Member
Username: Tdawg30

Ohio USA

Post Number: 1116
Registered: Jun-06
oh man you could have a mess of a box here if you think tuning the amp means tuning the box. totally different things here. hope you used a program to make that box and didnt just slap it together without knowing what the port tuning was


Gold Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 5874
Registered: Jun-06
Very pro looking man! Yeah, shoulda painted b4 carpet but looks good.


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 309
Registered: May-06
its like thisUpload


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 311
Registered: May-06
its whatev man, all i care about is the bump, and it indeed bumped, even with my little zx450.2. I cant wait to see what its like with my kx1200.1


Gold Member
Username: Ctmike

Ct.

Post Number: 4093
Registered: Feb-06
nice box. but i thought you were getting a zx1000.1?


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 313
Registered: May-06
nope kx1200.1.


Gold Member
Username: Stnorris

RE SX 15, IA US

Post Number: 2146
Registered: Apr-06
lol u should have really tuned it. that would have made it sound a lot better.

plus when it comes to puttin high power on them, how r u going to set the subsonic filter (so that ur subs dont blow/break) if you dont know the tuning?


Gold Member
Username: Oglejust

Post Number: 1473
Registered: Aug-06
omg u have 1.77 cubes per chamber then u have to subtract sub displacment and port displacement.... this box isnt gonna work!!!


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 318
Registered: May-06
alpine recommended .75cuft-2.0cuft. 1.77 or whatever it is is just fine for me, im not planning on entering competitions just enjoy my music at a higher and cleaner volume.


Silver Member
Username: Homegrowncam

Funky Town, TX United States

Post Number: 416
Registered: Jan-05
*shakes head*


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 319
Registered: May-06
"lol u should have really tuned it. that would have made it sound a lot better.

plus when it comes to puttin high power on them, how r u going to set the subsonic filter (so that ur subs dont blow/break) if you dont know the tuning?"

Is there a way to figure out the frequency to set it if i have already built the box?Upload


Gold Member
Username: Killerzracing71

Fredericksburg, Virginia United states

Post Number: 1346
Registered: Aug-05
YEP gottta do sum math to determinw wut that box is tune to

wut are the dimensions of the single chamber...... or

than here comes some long formula that will tell u i dont know it plus i just wokee up


Gold Member
Username: Johnfiac

A-ToWn, 152-153db Da... My wangers b...

Post Number: 2453
Registered: Mar-06
Redesign a badass box tuned good for the best SQ and SPL output of them subs... and let me get a copy of the plans :-p my friend still waiting on me to get him plans for his R's... lol


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 320
Registered: May-06
lol im not building another one. One port is...
Upload


Gold Member
Username: Adam_s

15 TC9 Hybrid, RE MT Softparts

Post Number: 1065
Registered: Aug-04
I just did a rough estimate and came up with it be tuned to about 47 hz. Umm not gonna sound that great.


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 322
Registered: May-06
oh well, its pretty bumpin if u ask me.


Gold Member
Username: Adam_s

15 TC9 Hybrid, RE MT Softparts

Post Number: 1067
Registered: Aug-04
You are missing out on a bunch of good bass thats below 47 hz.


Gold Member
Username: Adam_s

15 TC9 Hybrid, RE MT Softparts

Post Number: 1068
Registered: Aug-04
Didn't bump.


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 324
Registered: May-06
If anyone has new box dimensions that would pound harder, i may consider it, rebuild one, and sell this, i had fun building one, so im not too bummed. This time around, i would probably make my box 18" deep and new port dimensions. Let me know


Silver Member
Username: J_c_wheeler8

Columbus, IN United States

Post Number: 326
Registered: May-06
i dont know what you define bumping is, but intense vibrations from the rear view and windows is considered bumping in my book. I never said "pounding" though.


Gold Member
Username: Johnfiac

A-ToWn, 152-153db Da... My wangers b...

Post Number: 2455
Registered: Mar-06
Well 47hz should deffinetly get loud.... but it will sound like crap...seeing as it wont get low...
