Here we go again....chad's box pics
|

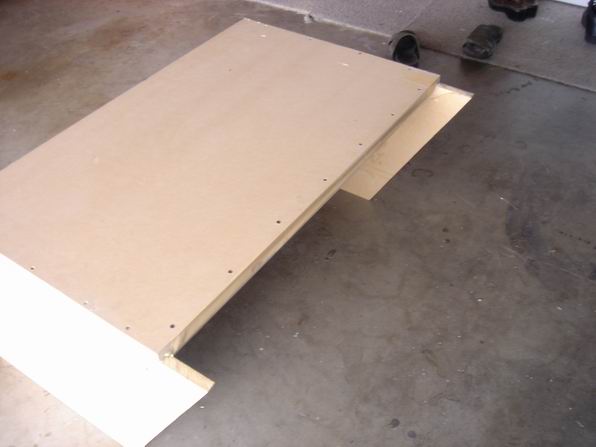

Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10817 Registered: Oct-05 | half way through. i just need to wait for some stuff to dry. i thought i'd post some progress pics for those of you who are bored. lol. if you notice the jig saw, i know its a piece of sh!t but it got the job done. took 30 minutes to cut the cutout but it worked. got real hot though.     |
|
Gold Member Username: 54danny54KY More Wang Th... Post Number: 3608 Registered: Nov-04 | nice...specs? |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10818 Registered: Oct-05 | 6.2 cuft after port and driver displacement. it will be tuned to around 38hz. port area is 154 sq inches. forgot one pic.  |
|
Gold Member Username: Nyyfan13Fi SSD USA Post Number: 4047 Registered: Jul-06 | looking good chad... |
|
Silver Member Username: BlazerboyPost Number: 372 Registered: Jun-06 | Looks good, but I think you spilled something inside of it... |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10819 Registered: Oct-05 | thats resin. i laid down 3 layers of mat and resined that wall cause i won't be putting a brace there. |
|
Gold Member Username: Logan__tilleImortal Box Building, Email us wit... Post Number: 6308 Registered: Feb-06 | you need a bigger box chad.. |
|
Gold Member Username: Tremor1127Fi Car Audio [:-] Post Number: 1102 Registered: Aug-06 | you build some wild looking boxes chad... too many angles for me to try, haha... |
|
Gold Member Username: Tremor1127Fi Car Audio [:-] Post Number: 1103 Registered: Aug-06 | haha, logan... oh wait, i got a saying... that box is gonna rip you apart...  |
|
Silver Member Username: BlazerboyPost Number: 375 Registered: Jun-06 | Haha, i know what it is, I was being sarcasterictism. |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10821 Registered: Oct-05 | oh ok. lol. logan i made the box this size on purpose. i need to get as much out of my amps as possible. don't want too much box rise. anyways the recomended for each driver is 3-5 cuft so it fits right in the required specs. |
|
Gold Member Username: Nyyfan13Fi SSD USA Post Number: 4052 Registered: Jul-06 | "sarcasterictism" what word is that? sarcastic or sarcasm? or a combo? |
|
Gold Member Username: Th3pwn3rChicago, Illinois U.S.A Post Number: 1255 Registered: Jul-06 | Why would you say he needs a bigger box Logan?Remember he has a CAR not an SUV. |
|
Gold Member Username: Livin_loud18 of Love Fi Audio Post Number: 1234 Registered: Jan-06 | lookin good so far. why don't you try out some interchangeable ports? |
|
Gold Member Username: DrivingrecklessDD 9515f, USA Post Number: 3061 Registered: Apr-06 | for some reason logan tryed to push the same idea on me  BIGGER BOX DOESNT = LOUDER!!!!!!!!! |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10825 Registered: Oct-05 | last pic of the day. i am tired now. lol.  |
|
Silver Member Username: Goodie_goopMidland, Texas U.S. Post Number: 383 Registered: Oct-06 | hahahaha |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10827 Registered: Oct-05 | eric the box just fits in my car perfect. no room to be changing ports. lol. i think i will be fine with this box. it will hit pretty low at the sametime giving me some spl. i hope it works cause i am getting tired of building boxes and changing things around. |
|
Gold Member Username: Logan__tilleImortal Box Building, Email us wit... Post Number: 6313 Registered: Feb-06 | goddamn lol.. |
|
Gold Member Username: Tdeaton1021Near Tampa, Florida USA Post Number: 3914 Registered: Sep-04 | i saw a guy hit 150.9 today with 2 BTL 15s. he had 2 t40001bds though. hope you finally get there. |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10830 Registered: Oct-05 | i hope so too trevor. just got to resin the corners and i am done. oh and the carpet gets here tomorow. i still need the bling bling so i am carpeting it. |
|
Silver Member Username: Solobaric4lifeSeminole, Al United states Post Number: 357 Registered: Jan-07 | looks good chad, hope it was worth the time i think youll hit 150+ now i believe in that let me know 4 sure if its louder wen ya hook it up |
|
Silver Member Username: Goodie_goopMidland, Texas U.S. Post Number: 384 Registered: Oct-06 | carpet? i think the face gives it a more custom look |
|
Gold Member Username: DrivingrecklessDD 9515f, USA Post Number: 3062 Registered: Apr-06 | DO NOT CARPET IT CHAD!!!!! |
|
Gold Member Username: 54danny54KY More Wang Th... Post Number: 3614 Registered: Nov-04 | wangalicious lol. make sum teeth at the port |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10835 Registered: Oct-05 | how much db can i loose man. i doubt i would lose a whole db. anyways i don't like the looks of a non-carpeted box. i'll sacrifice a little spl for a cleaner look. |
|
Silver Member Username: JblanfordPost Number: 526 Registered: Oct-06 | wait ? i hope you're joking...loss of db's from a carpeted box ? |
|
Gold Member Username: Nyyfan13Fi SSD USA Post Number: 4059 Registered: Jul-06 | yuo dont remember the thread when someone said you lose dbs from carpet joe?...lol chad, i love the face...please leave it on lol |
|
Gold Member Username: BernymacCambodian Post Number: 2148 Registered: Sep-04 | is it suppose to be a wall? or how you doing things this time. |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10837 Registered: Oct-05 | no not a wall. subs and port firing up. i just stood it up to take the pic. it looked like a face so i drew the eyebrowse and the nose. lol. |
|
Gold Member Username: Tdeaton1021Near Tampa, Florida USA Post Number: 3916 Registered: Sep-04 | vinyl would have less resistance  |
|
Silver Member Username: DreamtheaterPost Number: 120 Registered: Sep-06 | rofl thats the same jigsaw im using for my box now :D it aint that bad |
|
Gold Member Username: WingmanaliveA pic is worth 1000 words Post Number: 4221 Registered: Jun-06 | Tell ya what, if it still works, it's a good tool. I have no less than 35 drills. Cordless and standard. The one I use the most? My two speed, 20 year old Black and Decker dinosaur. Why? I guess I'm kinda married to it. |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10840 Registered: Oct-05 | that jig saw does work but it just takes too long. also i have to keep blowing the saw dust off cause i can't see the lines. besides all that it works well. oh and also i have to wear gloves cause it gets real hot. i think its gonna die soon. lol. |
|
Gold Member Username: JohnfiacIL Afghanistan,... Post Number: 1692 Registered: Mar-06 | i hope bigger box = louder in some sense..... i just built a 12cu box for a pair of dd9515's tuned to about 40hz~ the box needs better eyes... |
|
Gold Member Username: WingmanaliveA pic is worth 1000 words Post Number: 4227 Registered: Jun-06 | Sharp blades make all the difference. |
|
Gold Member Username: Tdeaton1021Near Tampa, Florida USA Post Number: 3917 Registered: Sep-04 | i had a jigsaw once that i was cutting a cutout for a 15 inch sub 1.5 inch baffle.... stuff started to ooze out.... it was its insides melting lol... router with jig FTW lol. |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10843 Registered: Oct-05 | i need a table saw. i did this one with only a skill saw and it isn't as perfect as i wanted it to be. its slightly off on one part. |
|
Gold Member Username: DrivingrecklessDD 9515f, USA Post Number: 3065 Registered: Apr-06 | 12 cubes for 2 15s is gigantic i sould say 8 cubes wouldve been find :-\ |
|
Gold Member Username: WingmanaliveA pic is worth 1000 words Post Number: 4228 Registered: Jun-06 | I love my tools. I just wish I had room for a panel saw. Life would be alot easier. |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10855 Registered: Oct-05 | yeah panel saws are awesome. killa that box would be too big for those subs. |
|
Platinum Member Username: Rovin1 12 Atomic ... Post Number: 10854 Registered: Jul-05 | ..stop being so damn cheap & get a new jigsaw -lol im liking that 2x4 looking braces - hope u gonna double baffle it though looks good dude ....  |
|
Silver Member Username: The_image_dynamicSan Diego Post Number: 470 Registered: Dec-06 | Chad, very nice box but half an hour to cut the hole??? That's like longer than your last box lol. I don't know if you are going to be building any more boxes anytime soon but you need to buy a decent router and then buy a circle jig like a jasper 200 and get a couple quality carbide spiral upcut bits (throw material up and out as you are cutting to avoid bogging) like this: http://www.mlcswoodworking.com/orderstatus/html/smarthtml/pages/bt_solid.html. That's the system I have been using forever. Perfect circle every time, quick as sh!t. |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10860 Registered: Oct-05 | yeah i need it. more box building to come. what i really need is a table saw so i can get some perfect cuts. thanks rovin. i don't think i will do the double baffle though. the brace should hold. |
|
Platinum Member Username: Rovin1 12 Atomic ... Post Number: 10862 Registered: Jul-05 | well each sub is weighing over 50pds so i would strongly suggest u do double baffle it ....... |
|
Gold Member Username: Livin_loud18 of Love Fi Audio Post Number: 1240 Registered: Jan-06 | table saws are damn handy, but some can only measure so far for your cut... |
|
Gold Member Username: AdddisorderWest palm, Florida Post Number: 3596 Registered: Jan-06 | looking goooood |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 10875 Registered: Oct-05 | this box is kind of a trial. i trying to see if the subs and ports firing like that will gain some spl. if it works i am probably gonna give the design to phil to build. the box in the pic didn't come out to clean. lol. i will have results with this box this sunday. hell if i hit 150 then ima just keep it. clean or not as long as it did the job. i only spent $60 on the box. i used the resin left over from my last box. lol. |
|
Silver Member Username: ImalikJackson, New Jersey Ocean Post Number: 124 Registered: May-06 | Good luck Chad |
|
Gold Member Username: DrivingrecklessDD 9515f, USA Post Number: 3069 Registered: Apr-06 | good box chad hope you hit 148 |
|
Gold Member Username: WingmanaliveA pic is worth 1000 words Post Number: 4275 Registered: Jun-06 | ^^^Now that's a little funny. |
|
Gold Member Username: Matt12490California USA Post Number: 1874 Registered: May-05 | ^^^It's more realistic though, the box is only tuned to 36-38hz. |
|
Gold Member Username: Matt12490California USA Post Number: 1875 Registered: May-05 | Never bumped |
|
Gold Member Username: Logan__tilleImortal Box Building, Email us wit... Post Number: 6383 Registered: Feb-06 | Isnt this box for bass race? How do you get that big sheet of MDF in your car?lol |
|
Platinum Member Username: BestmankindKINETIKLos Angeles, CA Post Number: 11016 Registered: Oct-05 | i had to cut it at home depot before i put it in my car logan. also yes it is for bass race but after hearing it yesterday, it is a nice spl box also. |
