Need help with box calc!
|

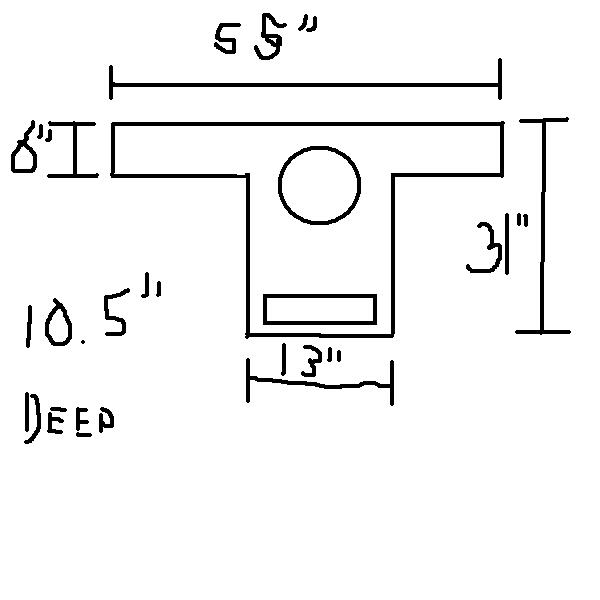

Silver Member Username: Liqdfire3Lee high acres, Florida Post Number: 101 Registered: Sep-05 | ok here is my box. but i cant seem to figure out how to calculate the internal volume so i can calculate the port. can anyone help me out? sorry for the sloppy drawing. the box will be in a single cab gmc  |
|
Silver Member Username: Snarl2004Audioque 12 SD2.5s, Earthquake P... Post Number: 433 Registered: Dec-06 | it is 3.97 ft^3 befor sub and vent displacment. but you have to acount for wood thickness. if the measurements above are inside dimensions then it will be 3.97 ft^3 but if there outside dimensions then the ft^3 will be smaller depending on wood thickness. |
|
Silver Member Username: Liqdfire3Lee high acres, Florida Post Number: 102 Registered: Sep-05 | yeah those ar outside demensions. the wood is .75" thick. so it would be around 3 ft^3? |
|
Silver Member Username: Liqdfire3Lee high acres, Florida Post Number: 103 Registered: Sep-05 | bump |
|
Silver Member Username: Snarl2004Audioque 12 SD2.5s, Earthquake P... Post Number: 437 Registered: Dec-06 | 2.7 |
|
Silver Member Username: Liqdfire3Lee high acres, Florida Post Number: 104 Registered: Sep-05 | would this amount of airspace be good enough for a Fi 12" Bl? |
|
Silver Member Username: Snarl2004Audioque 12 SD2.5s, Earthquake P... Post Number: 442 Registered: Dec-06 | the website says it likes 1.8-2.5 cubic feet the vent will prob take up .7 and the sub will take .15 so the total will be about 1.85 how much power u giving the sub? also sence you dont have much box volume to work with i would recommend using aeroports becuase they take up a lot less room |
|
Silver Member Username: Liqdfire3Lee high acres, Florida Post Number: 106 Registered: Sep-05 | im going to be giving the sub at least 1000 rms. probably a hifonics 1206 amp. what are aeroports? sorry im not familiar with these. but i wanted to go with the vented because i could just have the port on the front center. |
|
Silver Member Username: Adam_s15 TC9 Hybrid, RE MT Softparts Post Number: 691 Registered: Aug-04 | Aeroports are a way of porting a box they are tubes that are somewhat like PVC pipe but they are flared at the ends for smoother airflow. Here is a link to where you can buy some. http://www.psp-inc.com/ http://www.partsexpress.com/pe/showdetl.cfm?&Partnumber=268-352 |
|
Silver Member Username: Liqdfire3Lee high acres, Florida Post Number: 111 Registered: Sep-05 | if i added two more inches in depth, how much airspace would i have? |
|
Silver Member Username: Liqdfire3Lee high acres, Florida Post Number: 112 Registered: Sep-05 | by my calcs it should be 2.97 after all displacements right? |
