Lighting LT-380LCD Car alarm from Taiwan



Luc Perreau
Bronze Member
Username: Luc

Post Number: 47
Registered: Mar-04
Posted on
Hi,

I have purhased an LT-380LCD car alarm.

Found here: http://www.lightingtech.com.tw/new/

Looking at the diagram i have a few questions to ask about the wiring:

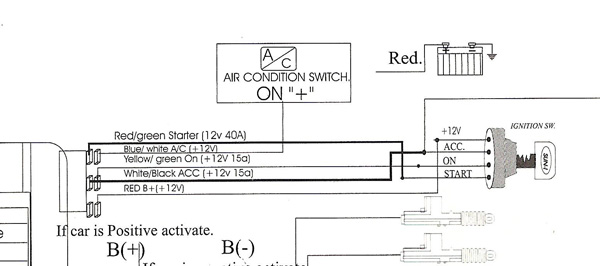

1) The blue/white A/C (+12v) wire going to the Air Condition switch, how do i connect it to the air conditon? I have a Mitsubishi Lancer GLX 1999 model.

2) The yellow wire labelled number 5, going to the relay for engine cutoff, how do i connect this? I see wire 87 missing on the relay, is that OK?

3) The orange wire labelled number 6, Door (+) door sw and the white wire labelled number 7, Door (-) door sw, what do i use it for? As door trigger? If so, what is the green wire labelled number 8 (trigger) used for then? it is confusing me.

4) The purple wire labelled number 10 for the window closer, how do i connect that? I have foor doors power window. When is the window closer used? Is it when i arm the car and it detects that a window is not closed? How do i ensure that i close all 4 windows using this wire?

5) The green/black wire labelled number 11, for the domelight, do i need to connect it if i have a door switch?

Thats all the questions i have, hope you will be able to assist me.

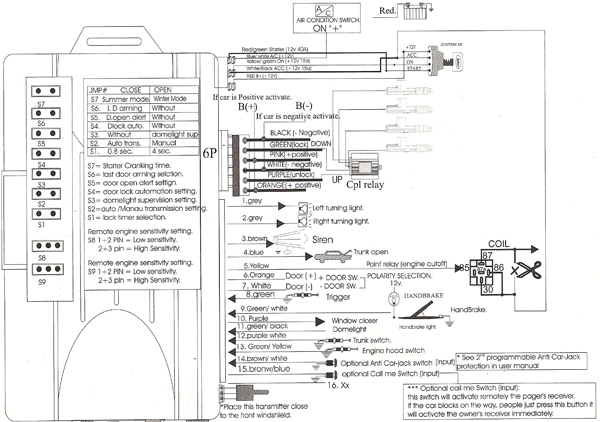

I have attached a scanned copy of the wiring diagram for your convenience,

Awaiting your reply,

Kind regards,

Luc
