Silver Member Username: Snarl2004
Earthquake Amp
Post Number: 248
Registered: Dec-06
|
Posted on if i get a dual 1 ohm sub how do i wire it for a 2ohm load?
do i use parallel or series/parallel
anyone have a diagram |
Gold Member Username: Wingmanalive
Nj
US
Post Number: 3335
Registered: Jun-06
|

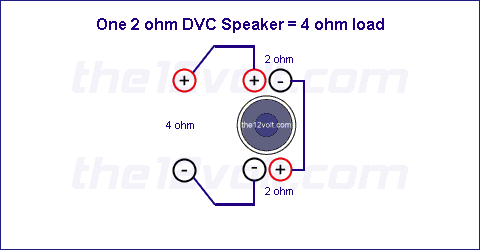

Posted on Same concept. Mine was from 2 ohm to 4. |
Silver Member Username: Nd4spd18
Post Number: 258
Registered: Jul-06
|
Posted on Series
Wire it like this:
 |
Gold Member Username: Wingmanalive
Nj
US
Post Number: 3336
Registered: Jun-06
|
Posted on Sorry. |
Gold Member Username: Wingmanalive
Nj
US
Post Number: 3337
Registered: Jun-06
|
Posted on ^^nicer diagram than mine. |
Silver Member Username: Nd4spd18
Post Number: 260
Registered: Jul-06
|
Posted on In the picture I posted there are two subs, but just think of them as the 2 voice coils of your one sub. |
Silver Member Username: Nd4spd18
Post Number: 261
Registered: Jul-06
|
Posted on Paul's picture works too. The ohms are not the same as yours, but the picture is correct. |
Silver Member Username: Snarl2004
Earthquake Amp
Post Number: 251
Registered: Dec-06
|
Posted on so i take pauls picture and if i imagine the 4ohm as a 2ohm and the 2ohm's as 1ohm's thats how i need to wire it? |
Silver Member Username: Nd4spd18
Post Number: 263
Registered: Jul-06
|
Posted on You got it.  |
Gold Member Username: Wingmanalive
Nj
US
Post Number: 3339
Registered: Jun-06
|
Posted on Yes sir. M.S. has got your back. |
Silver Member Username: Blazerboy
Post Number: 213
Registered: Jun-06
|
Posted on Where did you get that diagram M.S.? Could you possibly do one for me , but with a a8002v (800x1) and a 15" SSD (Dual 2 ohm in a series).
Thanks. |
