Wiring Orion H12.4
|
New member Username: Chewy2k3Birmingham UK Post Number: 1 Registered: Jan-07 | Hell im new to the site, i have 2 orion h12.4 subs that are to be wired up to a presision power 1500.1 amp, i have been told that these 2 subs need to be wired in parrellel to get the amp to go to 1ohm does anyone have any pics to show how this is done? the subs a dual voice coils with 2 +'s and 2 -'s srry to be noobish just making sure i get across correctly. Many Thanks Matt |
|

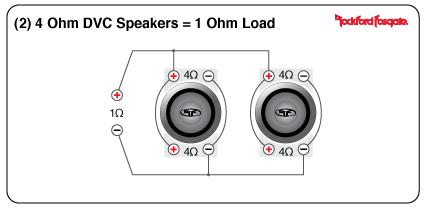

Gold Member Username: BestmankindFi Audio BTL Post Number: 8670 Registered: Oct-05 |  |
|
New member Username: Chewy2k3Birmingham UK Post Number: 2 Registered: Jan-07 | so 1 wire doesnt have to go around the subwoofer like that RE that is for sale? https://www.ecoustics.com/electronics/forum/car-audio/307163.jpg |
|
New member Username: Chewy2k3Birmingham UK Post Number: 3 Registered: Jan-07 | also will this amp run these 2 subs well or will it be underpowered |
|
Gold Member Username: BestmankindFi Audio BTL Post Number: 8671 Registered: Oct-05 | what do you mean. that pic is basically doing the same thing. just connect both +'s together and both -'s together on each sub. then connect together + from one side of one sub to the + from one side of the other sub and then in to the + on the amp. do the same for the -. |
|
New member Username: Chewy2k3Birmingham UK Post Number: 4 Registered: Jan-07 | i take it that it looks diffrent cuz its one sub , whouls that mean that there is 2 wires coming out of the + on the amplifire? and the same on 1 of the +'s on the subwoofer, what guage is best to use? |
|
Gold Member Username: BestmankindFi Audio BTL Post Number: 8673 Registered: Oct-05 | i use a 12 gauge and its fine. you could use bigger but that is up to you. |
