Hifonincs mono amp HELP

cody lodermeier New member Username: Codylo Post Number: 2 Registered: Dec-06	Posted on Wednesday, December 27, 2006 - 19:22 GMT ok so i have a hifonics brutus 2006d amp says its a mono amp but there are two channels coming out of it i have 2 06s12L5 2-ohm and i want to wire thema t 2 ohm but dont kno what channels to wire them from
ty mutlow Gold Member Username: Tjmutlow Post Number: 3426 Registered: Sep-05	Posted on Wednesday, December 27, 2006 - 19:54 GMT the amp will bridge the channels internally, so you need to run each sub to 4 ohms then use each input
cody lodermeier New member Username: Codylo Post Number: 3 Registered: Dec-06	Posted on Wednesday, December 27, 2006 - 22:00 GMT so r u saying that my 2 L5 at 4 ohms my amp only puts out 650 rms at 4 ohms and i need each sub to get 600 rms how can i wire this

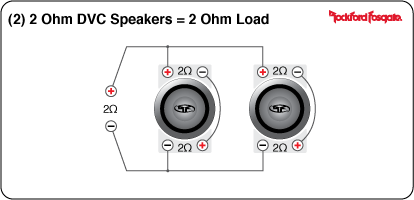

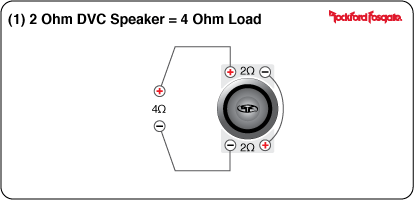

Optidriven Gold Member Username: N2audio Lawrence, Ks USA Post Number: 1099 Registered: Mar-04	Posted on Wednesday, December 27, 2006 - 22:06 GMT there aren't 2 channels, there are two connections for one channel. The connections are parallel inside the amp. You can either to this for each speaker terminal... Or this for one of them... Either way the amp sees 2 ohms and each sub will get ~650w.
cody lodermeier New member Username: Codylo Post Number: 5 Registered: Dec-06	Posted on Thursday, December 28, 2006 - 05:22 GMT thankx but c i didnt kno that u didnt want to connect the two white dots on the sub so ya i guess thats why i blew one but oh well thankx 4 the help problem solved
