Port area
|
Gold Member Username: CenusHicksville, Ohio Post Number: 2724 Registered: Jan-05 | ok this is the box i have planned out to build h19 w39 d22 inchs, with 2 6inch areoa ports 20inchs long 30hz tune with 56sq inchs port area, with net volume 6.82cf, if my calculations are correct, so would 56 sqinch be enough for a 6.5cf box after displacement, also where can i buy 6inch areo ports, i thought roe had them but when i cheked all they had were 3 and 4 inch. |
|
Gold Member Username: BestmankindFi AudioBTL Post Number: 8371 Registered: Oct-05 | marshall told me roughly 12 sq inches per cu ft is good. |
|
Silver Member Username: JblanfordPost Number: 180 Registered: Oct-06 | try www.realmofexcursion.com in their store section |
|
Silver Member Username: JblanfordPost Number: 181 Registered: Oct-06 | sorry did read that last part... |
|
Gold Member Username: CenusHicksville, Ohio Post Number: 2725 Registered: Jan-05 | chad i'll have a little under 10sq inchs per cf would that be enough. also i read somewhere that the lower you tune the more the upper bass will sound muddy is this true? |
|

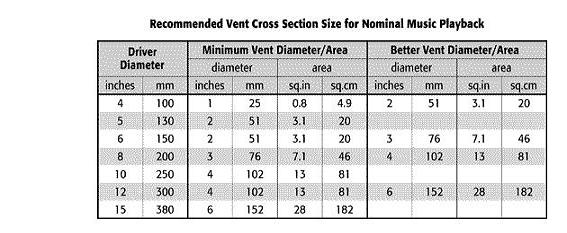

Platinum Member Username: Rovin1 12 Premier... Post Number: 10233 Registered: Jul-05 | i found this online a while ago  may not be the most accurate but its better than nothing ....  |
|
Gold Member Username: CenusHicksville, Ohio Post Number: 2727 Registered: Jan-05 | cool thanks rovin, atleast it gives me some ball park figures. |
|
Gold Member Username: BestmankindFi AudioBTL Post Number: 8390 Registered: Oct-05 | i don't know about lower tuning making your upper bass sound muddy dustin. i've never experienced it. i've had a box tuned to 28hz at one time and the upper bass sounded nice. the lower bass sounded awesome though. |
|
Gold Member Username: CenusHicksville, Ohio Post Number: 2733 Registered: Jan-05 | ya im going for massive low end, hopefully 3 15's tuned to 30hz will get that |
|
Gold Member Username: BestmankindFi AudioBTL Post Number: 8400 Registered: Oct-05 | that would be sweet. good luck and post alot of pics of your progress. |
|
Gold Member Username: CenusHicksville, Ohio Post Number: 2735 Registered: Jan-05 | definatly will i probally won't start untill march its cold as fvckk around here right now. |
|
Platinum Member Username: Rovin1 12 Premier... Post Number: 10243 Registered: Jul-05 | if u can somehow make it a single chamber box with 1 massive port - prepare ur self with some good earplugs .... |
|
Gold Member Username: CenusHicksville, Ohio Post Number: 2736 Registered: Jan-05 | its gonna be common chamber, i'd like to use 2 6inch ports cause it would fit perfectly, have 2 subs firing back the 3rd firing up in the middle and a 6inch port on each side of the sub, then i'd just make the ports an L shape. |
