Chad's new box



Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8306
Registered: Oct-05

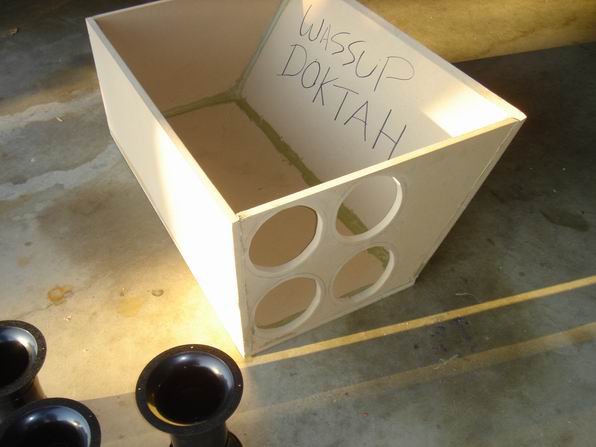

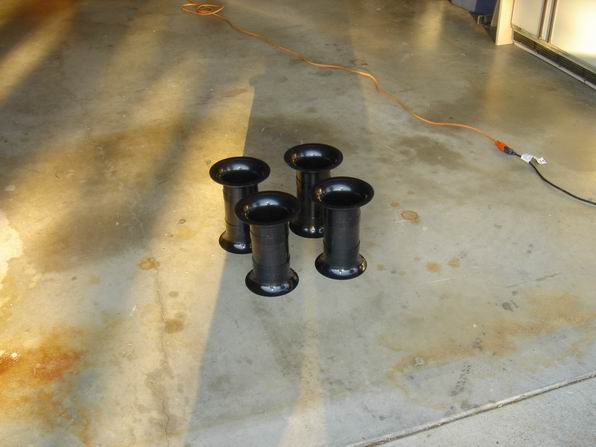

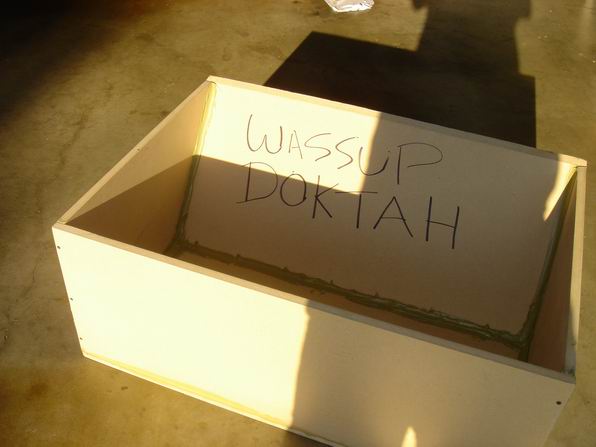

it will be done tomorow. i just thought i post some pics first.

Upload
Upload
Upload
Upload


Silver Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 475
Registered: Oct-05
looks good, where r the subs going to be


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8307
Registered: Oct-05
on top.


Gold Member
Username: Adddisorder

West palm, Florida

Post Number: 2504
Registered: Jan-06
coooool


Gold Member
Username: Drivingreckless

DD 9515f, USA

Post Number: 2601
Registered: Apr-06
i have competition :-)


Gold Member
Username: Logan__tille

RE XXXYeah its 15 ...

Post Number: 3687
Registered: Feb-06
how big is it?


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8308
Registered: Oct-05
what competition man. i am no where near a box builder like you drivingreckless.


Gold Member
Username: Drivingreckless

DD 9515f, USA

Post Number: 2604
Registered: Apr-06
ur better?
lol


Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 626
Registered: Aug-06
whats that tuned too? how many cubes


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8309
Registered: Oct-05
6.8 cuft net and it will be tuned to 40hz. for daily i will plug one port and the tuning will change to 34hz.


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 2266
Registered: Jan-06
Whats up with the trapazoidal shape? Thems ports are shorties tuning high? Polo..


Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 629
Registered: Aug-06
yeah for real thats what i was wondering 35hz is usually like 13-14 inches long each port for that size of a box


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8310
Registered: Oct-05
yeah i am tuning high polo.

those ports are 10 inches long.


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8311
Registered: Oct-05
like i said spl choice, if i plug one port the tuning will drop.


Gold Member
Username: Bernymac

Cambodian

Post Number: 1443
Registered: Sep-04
HmmmMMM I wonder what #'s you will hit this time :P. 40hz huh! Hope I'll be able to keep up.


Gold Member
Username: James1115

Use a simple...

Post Number: 8373
Registered: Dec-04
looks very nice Chad:-)


Silver Member
Username: Bump05

We Stay Fly, 18 SX USA

Post Number: 630
Registered: Aug-06
yeah it does very nice :-) im on my way on building my aero ported box too! i might do 3 6" ports or 4 4" not sure yet..


Platinum Member
Username: Rovin

1 12 Premier...

Post Number: 10196
Registered: Jul-05
interesting - so thats roughly 50sq" of port area if checked as 4" reg pipes

hope u have plan 2 seriously brace the internal walls of that box cause its looks like its gonna flex like crazy

? - how far from the side of ur car will those aeros be ??????.....


Gold Member
Username: Wingmanalive

Nj US

Post Number: 2248
Registered: Jun-06
Nice progress Chad. I do see a chance of flex myself, especially on the side the aeros are on. Maybe should have spaced them a little further apart? 150db here we come!Upload


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8312
Registered: Oct-05
i couldn't space them any further apart. those things flare out to 6 inches.

i have about 8 inches betweent the side of my car and the side of my box. maybe little less. if it don't work out i can always build another box. i love building boxes. lol.

hey guys i just applied the first coat of resin. should i have left the garage door opened when i was doing that. i feel kinda dizzy right now.


Gold Member
Username: Bernymac

Cambodian

Post Number: 1449
Registered: Sep-04
lmao, don't tell me you didn't get a respirator! LMAO! So how did you apply the resin? did you brush it on, pour it in, lay in fiberglass matt, then brush resin over it. or what? just wondering =).


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8315
Registered: Oct-05
what fiberglass mat? i thought you just pour it in the box and lightly brush it to even it out.

i am gonna get the fiberglass mat for the side walls though.


Gold Member
Username: Wingmanalive

Nj US

Post Number: 2266
Registered: Jun-06
Vapors, getcha talkin' like disney characters....mmmmmmm!


Gold Member
Username: J_baby15

Kentucky

Post Number: 1069
Registered: Feb-06
sweet chad. if it dont work out u can always send it to me. :-)


Gold Member
Username: James1115

Use a simple...

Post Number: 8411
Registered: Dec-04
yes Chad be careful breathing the resin man lol well ventilated area:-)


Gold Member
Username: Drsmith

Montana USA

Post Number: 2262
Registered: Nov-04
lol i like the message on the box


Gold Member
Username: Drsmith

Montana USA

Post Number: 2263
Registered: Nov-04
and just got done tearing up some gears of war is the answer


Gold Member
Username: Extrmndor3

Im pushing i... And pushing ...

Post Number: 2985
Registered: Feb-06
your going for spl right?? put some bonde on the corners and make it like rounded corners to make the airflow better will gain some spl :-)


Gold Member
Username: Extrmndor3

Im pushing i... And pushing ...

Post Number: 2986
Registered: Feb-06
Whats up with the trapazoidal shape? Thems ports are shorties tuning high? Polo

^^^ punk @ss polo now speakes ghetto wow wat did u use??? ghetto for dummies??

Upload


Gold Member
Username: Drsmith

Montana USA

Post Number: 2276
Registered: Nov-04
maybe you canned learned him sum stuf cuzz yuo cann wrte soo gud


Gold Member
Username: James1115

Use a simple...

Post Number: 8413
Registered: Dec-04
lololol!!!!!!


Gold Member
Username: Wingmanalive

Nj US

Post Number: 2279
Registered: Jun-06


Gold Member
Username: Logan__tille

RE XXXYeah its 15 ...

Post Number: 3693
Registered: Feb-06


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8322
Registered: Oct-05

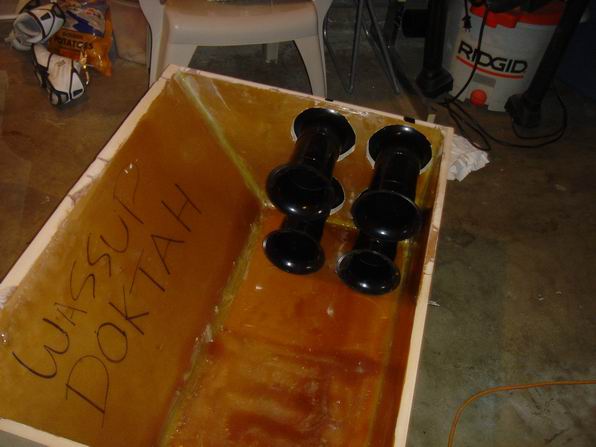

here is a progress pic. i was working on other stuff so i couldn't get much done. i did resin it.

Upload

btw i got my car tinted last week.

Upload


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 2224
Registered: Nov-05
you need some rims chad :-)


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8323
Registered: Oct-05
i have rims. the one of the tire rip so i decided to change all four. until i get tires i am just using my stock rims.


Gold Member
Username: Bernymac

Cambodian

Post Number: 1455
Registered: Sep-04
nicely done chad, nicely done indeed. as for my progress, I just got finish running my rca wires from HU to back, just in case you wanted to be informed =).


Silver Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 485
Registered: Oct-05
lol berny. And chadd - that tint is lookin goood!

as is the bocks!


Silver Member
Username: John_wash

Nashville, Tennessee

Post Number: 573
Registered: Dec-05
damn dat tint is lookin good as hell...how much dat run you?? Nice box 2...


Gold Member
Username: Bernymac

Cambodian

Post Number: 1457
Registered: Sep-04
Andrizzle, atleast its something :D. Better than nothing. Plus my friend at work wants to learn how to install audio equipment and it was helpful to have his little hands do the dirty work. My hands are to big to get into little spots. Well it was pretty fun though. More progress tomarrow or so.


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8324
Registered: Oct-05
the tint was $100. the rear and the small side windows are limo tint and the front sides are light tint.


Gold Member
Username: Dustin3

Tigard, OR U.S.

Post Number: 4611
Registered: Oct-05
i like it chad!!!! :-)

i just hope someday my name will be on your box


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 2268
Registered: Jan-06
Excuse me Mr slob my knob Rob, I am straight ghetto, grew u on the south side of Chicago. In November I go to the lagoons byt 63rd & Stony to snag fish so don't give me that sh!t you little PSSY. Just because I can read and write doesn't mean I cannot be ghetto. If you reread what i typed there was nothing ghetto about the question that was typed. In fact your problem is that until I typed it out you had no idea what the Fck a Trapazoid was, I won't be the one to explain it to you, MORON. STFU....Polo.



Upload


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8326
Registered: Oct-05
i had to make it trapazoid so it will fit perfectly in my car. it may look sharp on the outside but i rounded that corner with resin. just pour it in there and let it sit.

is it me or does resin smell good?


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 2269
Registered: Jan-06
I LIKEEEE IT TOO, LOL


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 3462
Registered: Jun-05
looking pretty sweet chad


Gold Member
Username: B101

DD, RE, FI, TREO, KICKERUSA

Post Number: 4100
Registered: Sep-05
get bubble gum resin next time bro... that smell last forever, even when u decide to sand it smooth 4years from now.

but yea, i love the smell of resin, doesnt even phase me.. lol also got to love that paint mixing smell... :-)

hey I would diffently matt the sides of the boxes with fiberglass matt, then soak them with resin, and smooth everything down glass slick with a sander, the entire inside of the box! that resin should be slicker than glass then!

box looks good, but u need to make it stronger, I would put about another 2gallons of resin in there!

if u hit your score and decide to keep the box, I would also resin the outside, sand it smooth, clean, paint it your factory black color of your car code, and shoot some clear coat on that b!tch! then that will be a pretty MF box!!

I did 1 similar to that for about 1200$$
yes sir!


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8329
Registered: Oct-05
thanks B.

yeah i put 3 layers of fiberglass mat on the part where ther ports are and one layer on the other walls.

with the high tuning and the fact that my subs will be in the same chamber, i am hoping for a better number.

damn i wish i had phil's carpentry skills though.


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 2270
Registered: Jan-06
Hey Chad there is another trick to getting rid of the corners. Use Great Stuff, yes you heard me the expanding foam. Take the supplied tube go downt he center line of the cranck until the corner is full. The use a putty knife to give shape, I prefer flat that stuff can be sanded and filled, even resin over it. The key here is to use it as a filler, costs less, weighs less and absorbs sound waves due to its porous nature. This stuff also bonds to just about anything and can be removed later if you wish. Polo. :-)


Gold Member
Username: Bestmankind

Fi AudioBTL

Post Number: 8333
Registered: Oct-05
very nice idea. i am gonna do that on my next box. that is if i don't hit 150db with this one, i am building another one. i am gonna do that to all the corners of the box with that foam stuff. after foaming the corners, i can just brush some resin over it to make it even smoother.

unfortuanately i put the top on already so i can't do that to the box right now. also i made a littel mistake of putting the sub cutout too close to the edge so i really can't get rid of the corner near there.

to get rid of the sharp corner, i stood the box up on that coner and poured alot of resin on it and let it sit.

i am kinda high from the resin smell right now.


Silver Member
Username: Impala63rag

Post Number: 282
Registered: Sep-06
nice box, I'm feelin' the ports, and the resin.

Upload
