My TTB box design.
|

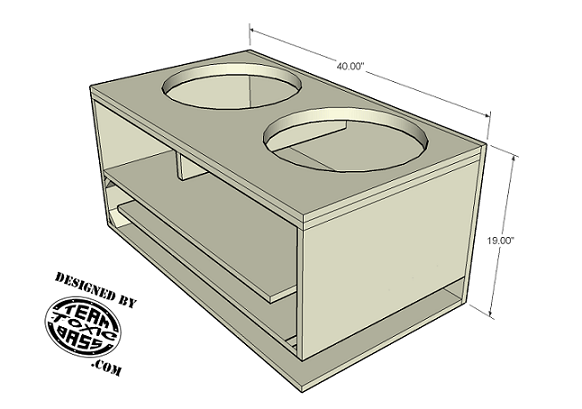

Silver Member Username: Tremor1127Post Number: 571 Registered: Aug-06 | just wanted to show off the box design i got from pete. its for 2 18" fi audio Qs tuned to low 30s. its 24 deep, subs up, port to passenger side, going in a grand cherokee ill start building it after christmas...  |
|
Gold Member Username: BestmankindFi AudioBTL Post Number: 7962 Registered: Oct-05 | show off. naw. jp. looks really nice man. |
|
Silver Member Username: Dmm2005DD Audio ORION, Warren Count... USA Post Number: 328 Registered: Aug-06 | that looks nice man...thats a really long port, what kind of benefit does that give you as opposed to a shorter one tuned to the same frequency? |
|
Platinum Member Username: Rovin1 12 Premier... Post Number: 10117 Registered: Jul-05 | hmmmmm - veddy interesting .... |
|
Silver Member Username: Devastation101Audioque SD2.5-ville, HENDERSON, NC US of A Post Number: 529 Registered: Feb-06 | Yea I was thinking the same thing. And what kinda vehicle is that going in? |
|
Gold Member Username: CenusHicksville, Ohio Post Number: 2657 Registered: Jan-05 | nice, does it cost anything to get a design of a box, im looking for a box design for the atlas's and TTB makes some of the best boxes ever. |
|
Silver Member Username: Tremor1127Post Number: 575 Registered: Aug-06 | the Qs are working better in slightly smaller boxes. this box takes up a total of about 10.5 cu ft. i think the port was going to take up some length either way. he assured me the woofers would be very musical though and i could still acheive incredible numbers if i was to ever compete. |
|
Silver Member Username: Tremor1127Post Number: 576 Registered: Aug-06 | Dustin, my box design was $30. I dont think the price varies much. Pete is one of the best. |
|
Silver Member Username: Waterboy2289Martinez, Georgia USA Post Number: 141 Registered: Jan-06 | Have you thought about what it is going to take to build that? It's going to be a VERY big pain in the a-ss. I hope you have excellent carpentry skills or the box is going to suck. I'm not saying its a bad design, just that it is needlessly complicated and if not built perfect, it will be $hit. Trust me on this, because I have bought designs from pete before....I faired much better designing my own boxes using win ISD, than with his designs. |
|
Silver Member Username: Waterboy2289Martinez, Georgia USA Post Number: 142 Registered: Jan-06 | jesus...I just took a longer look at that box and realized that it will be RETARDEDLY hard to build! BTW, your internal box volume before any displacements is only 8.397 cuft ...a little short of the 10.5 cuft you said. Cuft courtesty of http://www.rockfordfosgate.com/rftech/boxcalculator.asp |
|
Silver Member Username: Tremor1127Post Number: 577 Registered: Aug-06 | sorry about your bad luck with building boxes. i dont get it, what looks so hard about it? and btw, i didnt say ANYTHING about internal volume. 10.55 cu ft outside deminsions, courtisy of windows xp calculator... |
|
Gold Member Username: Dustin3Tigard, OR U.S. Post Number: 4529 Registered: Oct-05 | yea, lol. i really dont see anything that would be very hard in that box. |
|
Silver Member Username: Tremor1127Post Number: 579 Registered: Aug-06 | yeah, this should be fairly simple compared to some bandpasses and horns i have built. its just a ported box, haha... |
|
Silver Member Username: Tremor1127Post Number: 580 Registered: Aug-06 | yeah, this should be fairly simple compared to some bandpasses and horns i have built. its just a slot ported box, haha... |
|
Silver Member Username: Waterboy2289Martinez, Georgia USA Post Number: 143 Registered: Jan-06 | I have had no bad luck with building boxes. My only mistake was, in my early inexperience, to purchase designs from pete. Tell me what you gain by taking the effort to do a box like that when a typical slot ported/bass reflex design can accomplish the same thing. I have indicated in the included picture "what looks so hard about it." All I have to say is why bother! [URL=http://img138.imageshack.us/my.php?image=needlesslycomplicatedel3.jpg][IMG]http://img138.imageshack.us/img138/2794/needlesslycomplicatedel3.th.jpg[/IMG][/URL] BTW, how are your carpentry skills? |
|
Gold Member Username: Dustin3Tigard, OR U.S. Post Number: 4535 Registered: Oct-05 | there is nothing hard about that far corner. |
|
Silver Member Username: Waterboy2289Martinez, Georgia USA Post Number: 144 Registered: Jan-06 | With an 8.397 internal box all you would need is a 3.5 x 24 x 18 inch slot port to give you a 32hz tuning(of course that is a tuning of 32hz with no displacements included yet). If you are skilled enough to be building bandpasses and horns, then why are you spending money to purchase a slot port design? It's not hard to design a slot port box, and there's no need for it to be as complicated as petes. |
|
Silver Member Username: Waterboy2289Martinez, Georgia USA Post Number: 145 Registered: Jan-06 | NEEDLESSLEY COMPLICATED |
|
Silver Member Username: ShortysetniesRock Vegas, NC US Post Number: 706 Registered: Mar-06 | I agree that it is needlessly complicated but I'm not buiding it |
|
Silver Member Username: Waterboy2289Martinez, Georgia USA Post Number: 146 Registered: Jan-06 | haha....I am aware of that |
|
Silver Member Username: Tremor1127Post Number: 581 Registered: Aug-06 | dude, seriously... i like petes designs. i like the way boxes sound when i have built them with extra long ports. and again, you have misunderstood me. i am skilled enough to BUILD, not DESIGN. Pete, designed an awesome box, now im gonna build one... /conversation |
|
Silver Member Username: Waterboy2289Martinez, Georgia USA Post Number: 147 Registered: Jan-06 | alright then buddy....rock on |
|
Gold Member Username: Extrmndor3Im pushing i... And pushing ... Post Number: 2922 Registered: Feb-06 | how much did pete charged you for the design??? |
|
Silver Member Username: Tremor1127Post Number: 582 Registered: Aug-06 | 30 |
|
Gold Member Username: Extrmndor3Im pushing i... And pushing ... Post Number: 2924 Registered: Feb-06 | wow |
|
Gold Member Username: BestmankindFi AudioBTL Post Number: 7976 Registered: Oct-05 | that box looks like it will have awesome sq. good luck with everythig. please post some progress pics. |
|
Gold Member Username: Safe_crackerChicago, IL US Post Number: 2168 Registered: Jan-06 | It is an SQ box not a SPL so the restriction of the longer port won't matter. Probably the reason for the complicated design is to ensure he gets to build it and someone else won't attempt it, lol. Polo. |
