Pics Amp Update

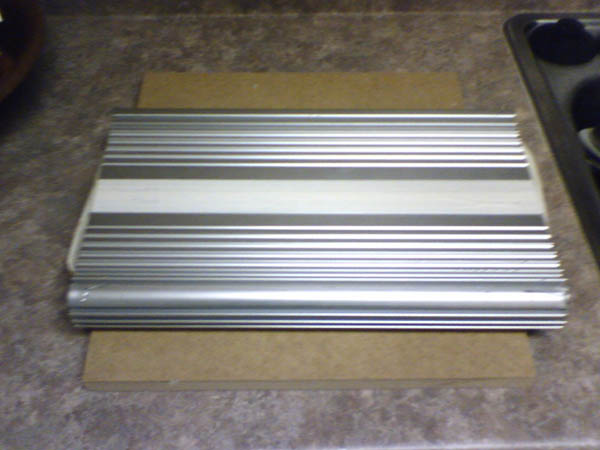

[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 638 Registered: Nov-05	Posted on Sunday, September 10, 2006 - 05:34 GMT Still working on it but here is a rough view of whats going on so far..

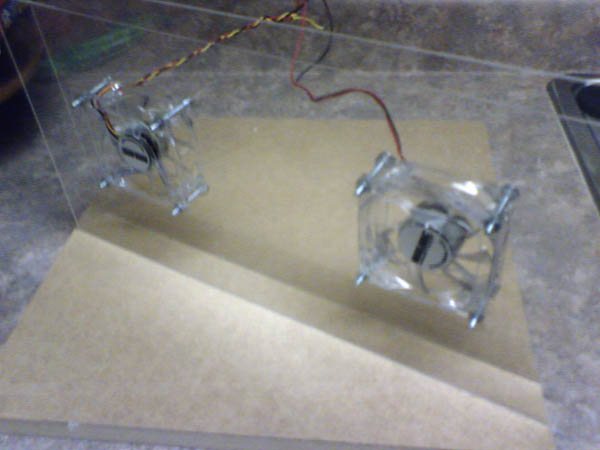

[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 639 Registered: Nov-05	Posted on Sunday, September 10, 2006 - 05:35 GMT The fans and back.. this is without the protective plastic off.. more pics will come soon!
justin ogle Silver Member Username: Oglejust Post Number: 106 Registered: Aug-06	Posted on Sunday, September 10, 2006 - 05:41 GMT thats awesome!!!
james caroll Silver Member Username: Mygame5982 H-TOWN, TEXAS US Post Number: 375 Registered: Jan-06	Posted on Sunday, September 10, 2006 - 05:45 GMT Are you building your own amp cover? if so..thats awesome..
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 640 Registered: Nov-05	Posted on Sunday, September 10, 2006 - 05:49 GMT Its the new backplate with two fans crossflowing for extra cooling.. the whole setup is going to be part of a floating amp rack. I'm also in the process of repainting the amp hence why you see masking tape
JC Silver Member Username: Camaro823 British Colu... Canada Post Number: 710 Registered: Jun-05	Posted on Sunday, September 10, 2006 - 05:50 GMT Where did you get the fans ? are they for computers ?
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 642 Registered: Nov-05	Posted on Sunday, September 10, 2006 - 05:53 GMT Yea.. they are just CPU case fans.. i actually stole one out of my computer and the other I got from circuit city for 7.99 .. you can get them off the net cheap but after shipping you might as well pay a few extra bucks and buy them local.
bernyMAC Silver Member Username: Bernymac Rialto, CA United States Post Number: 176 Registered: Sep-04	Posted on Sunday, September 10, 2006 - 06:37 GMT what kind of amp is that, is it a Massive audio amp? if so, hows much do you like it, =).
Chad Lee Gold Member Username: Bestmankind Los Angeles, CA USA Post Number: 5409 Registered: Oct-05	Posted on Sunday, September 10, 2006 - 06:39 GMT nice work kevin. you're the man.
bassman3 Gold Member Username: Dustin3 Tigard, OR U.S. Post Number: 3426 Registered: Oct-05	Posted on Sunday, September 10, 2006 - 06:40 GMT so when you went to CC you just got the same exact one from ur comp, or did u make that special covre over the fan too?
Chad Lee Gold Member Username: Bestmankind Los Angeles, CA USA Post Number: 5410 Registered: Oct-05	Posted on Sunday, September 10, 2006 - 06:42 GMT quit following me around bassman. lol. jk man.
Chad Lee Gold Member Username: Bestmankind Los Angeles, CA USA Post Number: 5412 Registered: Oct-05	Posted on Sunday, September 10, 2006 - 06:44 GMT didn't bump this stupid thing.
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 644 Registered: Nov-05	Posted on Sunday, September 10, 2006 - 07:45 GMT its a RE 35.1 / Better Audio 1600M1 .. I went to CC and got the same fan but because the one out of my computer has quite a few hours on it the LEDs are not quite the same color but oh well.. blue is blue. the back itself and cover for the fans are two pieces of plexi
J@Yme Gold Member Username: Crayola0 Wisconsin Post Number: 1030 Registered: Jun-06	Posted on Sunday, September 10, 2006 - 16:06 GMT what did u use to connect the plexi together and what did u use to connect the plext to your amp?
J@Yme Gold Member Username: Crayola0 Wisconsin Post Number: 1031 Registered: Jun-06	Posted on Sunday, September 10, 2006 - 16:07 GMT one more question, what do u hook the fans to?
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 653 Registered: Nov-05	Posted on Sunday, September 10, 2006 - 17:44 GMT I just used 8 bolts to connect the two pieces of plexi and fans together.. its not connected to the amp yet but I'm probably just going to use some screws lol. as far as the fans.. they were hooked up to a ACDC converter because I was inside but I'm just going to wire the + to the REM and GND to GND
mat dope Silver Member Username: Adddisorder West palm, Florida Post Number: 774 Registered: Jan-06	Posted on Sunday, September 10, 2006 - 17:47 GMT impressive design
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 654 Registered: Nov-05	Posted on Sunday, September 10, 2006 - 18:20 GMT I'll have more pics later today with final product.. just need to find my damned heat shrink! lol
Brandon Gold Member Username: Theelfkeeper Stockbridge, GA USA Post Number: 2901 Registered: Feb-05	Posted on Sunday, September 10, 2006 - 18:32 GMT cool cool how are they wired?? both pushing air in, out or one pushing air in and one pulling out?? the last setup would be best.
marshall white Gold Member Username: Southernrebel Monroe, Louisiana USA Post Number: 3263 Registered: Mar-04	Posted on Sunday, September 10, 2006 - 18:48 GMT dam kevin, you made short work of paintin that amp...lol looks great!
J@Yme Gold Member Username: Crayola0 Wisconsin Post Number: 1036 Registered: Jun-06	Posted on Sunday, September 10, 2006 - 19:53 GMT how much is plexy glass cause that would be sweet to make a box out of plexy with neon in it

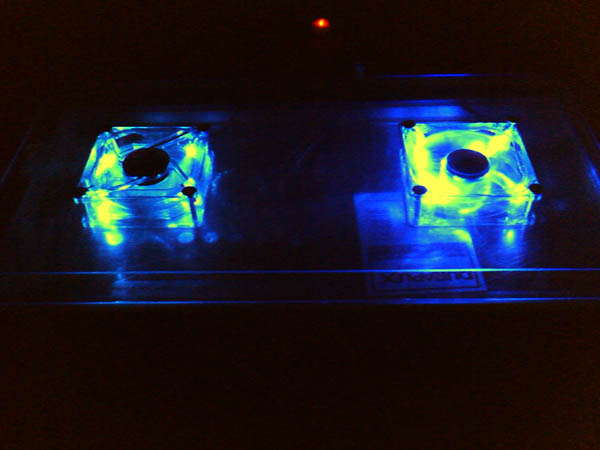

[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 655 Registered: Nov-05	Posted on Monday, September 11, 2006 - 03:45 GMT heres the final..
justin ogle Silver Member Username: Oglejust Post Number: 113 Registered: Aug-06	Posted on Monday, September 11, 2006 - 03:56 GMT wow!!! thats awesome
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 657 Registered: Nov-05	Posted on Monday, September 11, 2006 - 12:34 GMT it turned out better than i thought.. went to a comp last night and placed 1st in class...can't wait to get the amp in to see how much my numbers go up and jaymes.. as far as plexi you'd need an 1" so the cost would be more than the practicality of it. if you want just show its fine but they have prefab plexi enclosures on the net
Chad Lee Gold Member Username: Bestmankind Los Angeles, CA USA Post Number: 5433 Registered: Oct-05	Posted on Monday, September 11, 2006 - 16:16 GMT WTF kevin. damn that looks sweet man. great job. you can enter the show off part of the competition next time.
Chad Lee Gold Member Username: Bestmankind Los Angeles, CA USA Post Number: 5435 Registered: Oct-05	Posted on Monday, September 11, 2006 - 16:19 GMT damn it get up to the top.
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 659 Registered: Nov-05	Posted on Monday, September 11, 2006 - 22:48 GMT forum doesn't ever want you to bump threads :P
marshall white Gold Member Username: Southernrebel Monroe, Louisiana USA Post Number: 3292 Registered: Mar-04	Posted on Tuesday, September 12, 2006 - 01:23 GMT looks great kevin!!! makes me wish i would have painted it when i had it, lol.
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 676 Registered: Nov-05	Posted on Tuesday, September 12, 2006 - 12:41 GMT heh .. its amazing what a little color can do
Roland Berthiaume Silver Member Username: Extremesound1 Coventry, RI United states Post Number: 229 Registered: Mar-06	Posted on Wednesday, September 13, 2006 - 22:56 GMT i wold be happy to just show off the amp in a nice amp rack,,,not even put in subs... that looks amazing!!
Robert Silver Member Username: Th3pwn3r Chicago, Illinois U.S.A Post Number: 174 Registered: Jul-06	Posted on Wednesday, September 13, 2006 - 23:02 GMT Was your amp over-heating or something?Also to me it looks like you have the fans mounted on the bottom of the amp...so if that's true then you can't really lay that side to a surface.Get some pics when you finish your rack so I can see how you did it Nice work!
marshall white Gold Member Username: Southernrebel Monroe, Louisiana USA Post Number: 3325 Registered: Mar-04	Posted on Wednesday, September 13, 2006 - 23:06 GMT No that amp never over heated on me...i just sold it to Kevin w/ no bottom plate. He put the plexi and fans on it for looks. It was all white when i had it...he painted it.
Robert Silver Member Username: Th3pwn3r Chicago, Illinois U.S.A Post Number: 176 Registered: Jul-06	Posted on Wednesday, September 13, 2006 - 23:08 GMT Ummm....lol! He painted it? Wouldn't the paint keep even more heat?I'm pretty sure it would lol.Probably the reason for installing those fans.
[Kéviñ_Previé] Silver Member Username: Frkkevin Lake Worth, Texas US Post Number: 693 Registered: Nov-05	Posted on Wednesday, September 13, 2006 - 23:15 GMT I'm sure the heat would not be a problem.. besides its only going to be running at 1 ohm. If I had two subs I'd run it down to .5 for burps but I'm stuck with 1 ohm for a while. I added the fans just because I was bored. It all started when I was just going to put a plexi bottom on it lol.
Paul Larrea Silver Member Username: Wingmanalive Pine hill, Nj US Post Number: 369 Registered: Jun-06	Posted on Wednesday, September 13, 2006 - 23:21 GMT
