2 Questions, How to connect subs, and how do you know how many ohms you want?
|
Bronze Member Username: Thejoester101Post Number: 13 Registered: May-06 | These are the full specs of the speakers: XS-LD125P5 sony explodes # P5 Rigid Aluminum Deposition Cone Design # Dual 4-Layer Voice Coils # Durable Foamed Rubber Surround with Stroke Stabilizers # Double Damper Suspension # Dual Stacked Magnets # Gold-Plated Binding Posts # Rear Voice Coil Vent with Vented Heat Sink # Optimized for both Small Sealed and Ported Enclosures # Mounting Depth: 5.88" # Rec. Sealed Box Dims: 1.00 cu.ft. # Rec. Ported Box Dims: 1.50 cu.ft. # RMS Power Range : 125-500 Watts # Peak Power Handling: 1400 Watts # High Frequency Response: 2500 Hz # Low Frequency response: 18 Hz # Impedance: 4 Ohm specs for amp: sony XM-2002GTR # 200 watts RMS x 2 at 4 ohms # 250 watts RMS x 2 at 2 ohms # 500 watts RMS x 1 at 4 ohms (4-ohm stable in bridged mode) # Low-pass crossover (50-300 Hz, 12 dB/octave) # Variable bass boost (0-10 dB at 40 Hz) # MOSFET outputs and power supply # Speaker-level inputs with signal sensing for automatic turn-on # Preamp inputs and outputs # Fuse rating: 40A x 2 # CEA-2006 compliant # Wiring and hardware not included with amplifier # Dimensions (W x H x D): 15-7/8" x 2-1/4" x 10-7/8" I have two questions, on is I want to connect my two subwoofers to the amp. What is the best way to do this and at how many ohms. And then the second question is, If i connect at different ohms what will be different in the sound of the subwoofers? |
|
Silver Member Username: Van_manBoston, MA Post Number: 382 Registered: Mar-06 | the best you will get with that combo is: hook each sub up to each channel. # 200 watts RMS x 2 at 4 ohms  |
|
Bronze Member Username: Thejoester101Post Number: 14 Registered: May-06 | how do you do that, series or parallel? |
|
Silver Member Username: Van_manBoston, MA Post Number: 391 Registered: Mar-06 | neither. put one sub one one channel. 2nd sub on 2nd channel. If you seies them load will be 8 ohm load. in Parallel it would be a 2 ohm load. So you would have both subs on 1 channel at 2 ohms at 250 watts plit by 2 = 125wrms to each sub. If you had four subs you could use both channels like that. but only 2 subs, the best is 1 sub on each channel. Or use 1 sub and bridge the amp for 1x500@4ohms. |
|
Bronze Member Username: Thejoester101Post Number: 15 Registered: May-06 | Hey again, what do i do with the other + and - connectors. I have two sets on each subwoofer since it's a voice coil. Do i leave one set unplugged, (disconnected)? |
|
Bronze Member Username: Thejoester101Post Number: 16 Registered: May-06 | sorry to correct myself ^^^ its a DUAL VOICE COIL |
|
Bronze Member Username: Thejoester101Post Number: 17 Registered: May-06 | Would it make a difference if i left one set disconnected? |
|

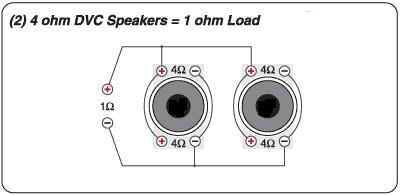

Silver Member Username: Van_manBoston, MA Post Number: 394 Registered: Mar-06 | brigge the amp and wire like this.. 250 to each sub.  |
|
Bronze Member Username: Thejoester101Post Number: 19 Registered: May-06 | But this is a 1 ohm load. I need a 4 ohm load. |
|
Silver Member Username: Van_manBoston, MA Post Number: 395 Registered: Mar-06 | check it out http://www.crutchfieldadvisor.com/learningcenter/car/subwoofers_wiring.html?subs =2&impedance=DVC4x2 |
