Stupid fs question



Silver Member
Username: Theweasel

Post Number: 171
Registered: Mar-06
why is it that my subwoofer's frequency response is listed at 24 hz, but it will play a 5 hz test tone? i know this is probably a stupid question, sry


Gold Member
Username: Basshead86

Google is your Friend, FL

Post Number: 3340
Registered: Aug-05
Fs is the resonant frequency of the sub in free air.


which means at that frequency the subs VC rise in impedance....to what lever...nobody knows....coul dbe as much as 50 ohms...i have read that somewhere. lol. but anyway....your sub will play a 5 hz tone....BUT it will not be at the same power it will play say.....a 50hz tone....b/c of the subs impedance rise..

when the sub's VC's rise in impedance.....the amp can not give it as much power....so more power is needed to acheive the same output.

the only way a sub will not play say....a 5hz tone is if their is a SS filter set to like 25hz....b/c then anything below 25hz...will roll off(it is not a brick wall filter)


Gold Member
Username: Basshead86

Google is your Friend, FL

Post Number: 3341
Registered: Aug-05
freq. response is what the sub will play until it reaches its FS....or when it plays so high to the point that the motor structure can't move that fast. and the bass starts to sound muddy. i think.:-)


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 7817
Registered: Jul-05
5 hz !

r u planning 2 talk 2 whales with such a loooooow frequency - lol .......


Silver Member
Username: Thomas_g

NM

Post Number: 469
Registered: Oct-05
lol rovin


Silver Member
Username: Mixneffect

Orangevale, Ca. USA

Post Number: 903
Registered: Apr-05
My 8" Audax sub reproduces audible 25 Hz in a ported 1 CF enclosure.

The same driver reproduces down to 10 Hz in a ported 1.5 CF* enclosure.

The Fs is 34 Hz.


Silver Member
Username: Mixneffect

Orangevale, Ca. USA

Post Number: 904
Registered: Apr-05

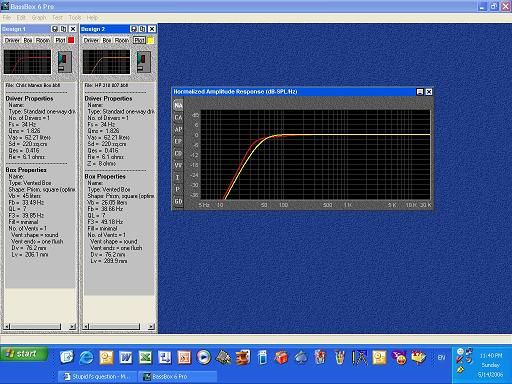

Here are the graphs

Yelow = 1 CF
Red = 1.5 CF

Upload


Silver Member
Username: Killerzracing71

Fredericksburg, Virginia United states

Post Number: 753
Registered: Aug-05
is bass box a free program...can sum1 post links


Gold Member
Username: 54danny54

Betsy layne, Kentucky..GO... USA duh

Post Number: 2365
Registered: Nov-04
lol its nowhere near free...up in the 100's of dollars


Silver Member
Username: Mixneffect

Orangevale, Ca. USA

Post Number: 905
Registered: Apr-05
http://www.partsexpress.com/webpage.cfm?webpage_id=3&SO=2&&DID=7&CATID=48&Object Group_ID=360

Here are a few programs, including BassBoxPro6 including X-over Pro.
