Sub wiring
|
Bronze Member Username: LittleguyPost Number: 96 Registered: Dec-04 | Can anyone tell me what ohm to wire these subs at? They are Pioneer 12" TS-W305DVC. On the backs it says Dual 4 ohm voice coils, 400w nom, 800w max, 2/8 ohm impedance. This is how they were wired, not sure what ohm it is. The amp i'm running them with is a A1200 PPI 4ohm stable. |
|
Bronze Member Username: LittleguyPost Number: 98 Registered: Dec-04 | Can somone help me out here? |
|
Gold Member Username: James1115Ct Post Number: 5875 Registered: Dec-04 | well I can't see your pic but this is how you want to wire them. wiring option 2 is the one you want. By the way that is a sick amp way to nice for those subs. |
|
Bronze Member Username: LittleguyPost Number: 99 Registered: Dec-04 | I hear you:} I have a PPI 4 channel 450 promos for my Midbass and midrange. |
|
Bronze Member Username: LittleguyPost Number: 100 Registered: Dec-04 | Lets try this again. These is how they were wired.http://i59.photobucket.com/albums/g283/Steve630/CAGX4107.jpg |
|
Silver Member Username: LittleguyPost Number: 101 Registered: Dec-04 | Anyone know what ohm this would be? |
|
Silver Member Username: LittleguyPost Number: 102 Registered: Dec-04 | I wired them up to a 4 ohm load and they don't sond good at all, Lost alot of power. |
|
Gold Member Username: RovinTrinidad & T... Post Number: 7811 Registered: Jul-05 | if u have a mono amp - wire ur subs like this  & port them ! ....... |
|
Silver Member Username: LittleguyPost Number: 103 Registered: Dec-04 | Rovin, do you know what ohm this would be. .http://i59.photobucket.com/albums/g283/Steve630/CAGX4107.jpg |
|
Silver Member Username: LittleguyPost Number: 104 Registered: Dec-04 | The amp is a 2 channel. |
|
Gold Member Username: RovinTrinidad & T... Post Number: 7813 Registered: Jul-05 | not sure what u did there but use this guide to figure whats best in ur case http://www.the12volt.com/caraudio/woofer_configurations.asp |
|
Silver Member Username: Talon_es93Post Number: 218 Registered: Mar-06 | i think that would put it at 8 ohms |
|
Gold Member Username: James1115Ct Post Number: 5877 Registered: Dec-04 | Hey Steve that way you have them wired makes no sense. @ of the vc's arnt even powered. go to any wiring page and wire them up to a 4 ohm load. that amp is not stable under 4 ohms mono so don't run it any lower. If you want to run it at 1 ohm get a ono amp and in this case let me know because I will buy the a1200 from you. |
|
Silver Member Username: LittleguyPost Number: 105 Registered: Dec-04 | Hi James,it doesn't sound very good at 4ohms at all. The way i had them wired they sound alot better. Really hit hard. A car audio shop here in Baltimore told me to wire them up that way but i was running an older fosgate amp at the time. I know it is only 4 ohm stable thats why i wanted to rewire them. It must be some kind of competion setup, lol.... Surely must be somone on here that has seen this before. {HELP} |
|
Silver Member Username: Van_manBoston, MA Post Number: 273 Registered: Mar-06 |  |
|
Silver Member Username: Van_manBoston, MA Post Number: 274 Registered: Mar-06 | Original pic was driving coil 2 and 3 at a 1 ohm load, Thats why it sounded like it was hitting harder. |
|

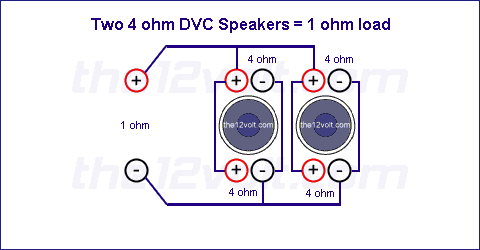

Silver Member Username: LittleguyPost Number: 106 Registered: Dec-04 | Thanks Marc, do you have pic for the 1 ohm load? |
|
Silver Member Username: LittleguyPost Number: 107 Registered: Dec-04 | Also marc, would i get a better SQ out of the subs if i damppen the inside of the box? |
|
Silver Member Username: LittleguyPost Number: 108 Registered: Dec-04 | Anyone know if that would help? |
|
Silver Member Username: LittleguyPost Number: 109 Registered: Dec-04 | I ended up wiring them up @ 1 ohm, they sound so much better, thanks marc:} |
|
Silver Member Username: Van_manBoston, MA Post Number: 283 Registered: Mar-06 | Cool, |
|
Silver Member Username: LittleguyPost Number: 110 Registered: Dec-04 | I think i might look for an Orion amp on ebay though, one that can run 1 ohm stable. Did PPI make any older amps in the art series that would run stable at 1 ohm? |
|
Silver Member Username: LittleguyPost Number: 112 Registered: Dec-04 | The subs hit so hard marc, when i play a cd it skips when the bass hits:} |
|
Silver Member Username: Van_manBoston, MA Post Number: 286 Registered: Mar-06 | Nice |
|
Gold Member Username: TjmutlowPost Number: 2060 Registered: Sep-05 | your going to prob bun that amp out at that ohm load |
|
Silver Member Username: LittleguyPost Number: 113 Registered: Dec-04 | I know, i'm going to look for another amp and use this for my mids. |
