Box question(all the box builders need an advise)
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 620 Registered: Feb-06 | wats the most common box tunnings in a suv, car and truck for spl?? and wats the common box tunning in a suv, car and truck for sq?? no spl. and finally wats the tuning for each type of vehicle for sql?? thanks alot ;) |
|
Silver Member Username: Scott_debakerPittsburgh, P.A. U.S.A. Post Number: 271 Registered: Feb-06 | for spl tune it high like 38hz--40hz or u wanna go spl for 1 note get the cars top fre. an sq i would say tune it low sounds best low i think an i prefer an dont no about the cars sql |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 621 Registered: Feb-06 | yeah i know that but i want to know wats the common resonance freq of each type of vehicle for suv i think is around 40-45 hz but i have no idea for truck or cars, and i want to know the best tunning freq for spl, and sq for each type of vehicles |
|
Silver Member Username: Matt12490Benicia, California USA Post Number: 783 Registered: May-05 | i would go like this 28-32hz - SQ 33-37hz - SQL 38-45hz - SPL |
|
Gold Member Username: RovinTrinidad & T... Post Number: 7700 Registered: Jul-05 | thats pretty good ^^^ .. |
|
Bronze Member Username: Emdawg12345Post Number: 31 Registered: Jan-06 | http://www.rotteneggs.com/?refid=182315 read this it shows a bunch of things ull probobly find use full |
|
Bronze Member Username: Emdawg12345Post Number: 32 Registered: Jan-06 | http://www.rotteneggs.com/?refid=182315 read this it shows a bunch of things ull probobly find use full |
|
Silver Member Username: Sw9152Michigan Post Number: 554 Registered: Feb-06 | ^^^yeah i used to go on that site when i was interested in making homemade bombs. |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2875 Registered: Mar-04 | lilrob...you have an explorer, right? if so, go w/ sub up port back. line the back of the box up w/ the last 2 latches on the floor. your vehicle is gonna have a peak at 42-45hz. Since you are using an SX, tune to ~39hz and go from there. (if you can get on a mic, try to do some testing w/ a sealed box to find your true peak) |
|

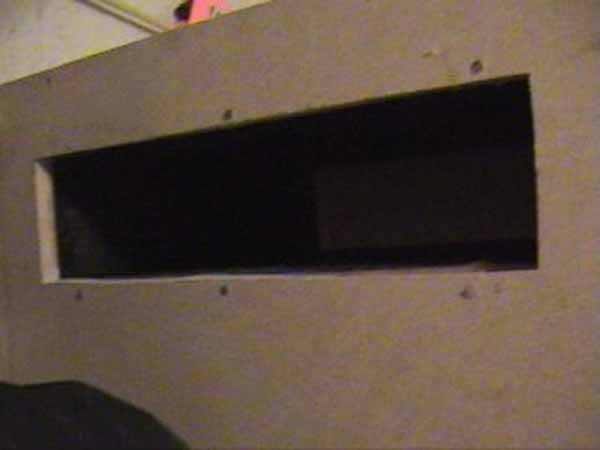

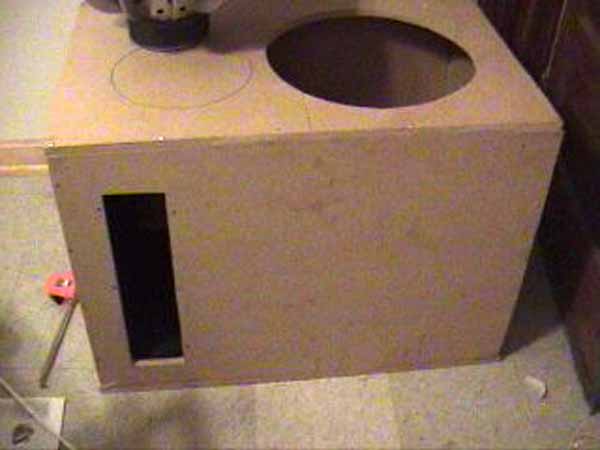

Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 622 Registered: Feb-06 | thanks alot marshal but i already did the box u remember that u told me sub up and port back i did it the volume was 9.8 cub ft and the tuning was around 43 hz the thing is that i did interchangeble ports so i want to have diferent configurations and im buldin some friends box but he have a car so i dont know how to tune it in a car , marshal im doing around 145 db at the dash in the termal lab wit the box and the precicion power dcx1500.1 thanks marshall |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2880 Registered: Mar-04 | what kinda of car does you friend have? |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 623 Registered: Feb-06 | he have a dodge neon 97 |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 624 Registered: Feb-06 | he wanted the interchangable ports but in a car i dont know how to tune it is the same in a car and suv?? |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2883 Registered: Mar-04 | if i remember right neons like to peak around 49-52hz. (only bout 70% sure on that one) i would try tuning to 35-36hz for daily since its a truck-car. |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2884 Registered: Mar-04 | btw...to get a box to peak at 49-50hz, you will want to tune alil lower than that freq. usually 3-8hz depending on sub and box size. |
|

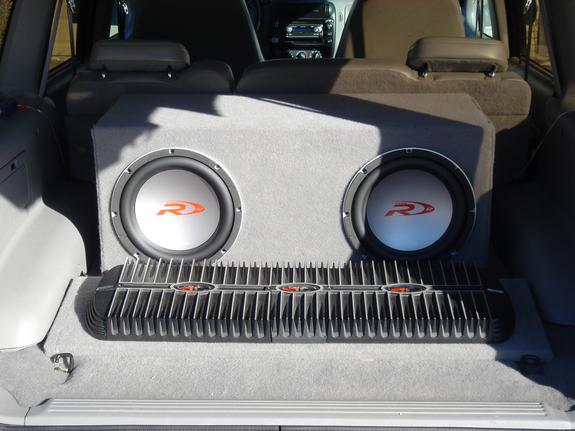

Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2885 Registered: Mar-04 | oh...and do you have any pics of the box you built for the SX18? i'd like to see how it turned out. |
|

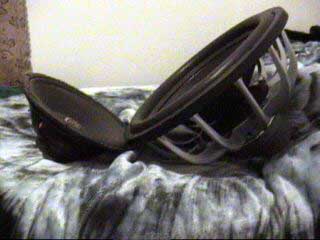

Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 626 Registered: Feb-06 | dont you remember that i posted wit the brochure of the reaudio subs but i will show them to you hold on |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 627 Registered: Feb-06 |    |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 628 Registered: Feb-06 |  |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2888 Registered: Mar-04 | lol....nope i dont remember. but i have slept since then  |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 629 Registered: Feb-06 |  |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 630 Registered: Feb-06 |   |
