What amp to use with 3 sub box



New member
Username: Myexpo

Chicago, IL US

Post Number: 3
Registered: Feb-06
well i have 3 pioneer 12's in a box and i was given these with a 2 channel amp. Im just learning about car audio so please forgive my dumb question. So should i just use that amp...and how?? or just buy a new amp all together??


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 5889
Registered: Jul-05
post sub model no & amp model no

only then can anybody say what 2 do ........


New member
Username: Myexpo

Chicago, IL US

Post Number: 4
Registered: Feb-06
Pioneer ts-w306 and Rockford Fosgate Punch P6002 2-Channel Amp


Bronze Member
Username: __nick__

Post Number: 20
Registered: Feb-06
Hey I have two Alpine Type R 12"s that are 4 ohms and Dual Voice Coil. They are 500 watts rms and 1500 watts peak each. Will this amp overpower them or will it match up well? Hifonics BXi 1606D, It runs 1600 watts which would mean I'd be running 800 watts to each sub, would that blow them out or is it a nice match, please answer back soon,


Thanks...


Silver Member
Username: Hootz

Saskatoon, Saskatchewan Canada

Post Number: 118
Registered: Oct-05
Yeah that will be okay. Just keep the gain settings low.


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 5892
Registered: Jul-05
NO problem those Rs handling that Hif amp
Rs can handle more than rated what its rated 4 - i tested out that theory on mine last wk end .......

read almost 2 the end https://www.ecoustics.com/electronics/forum/car-audio/189456.html ......


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 5895
Registered: Jul-05
Oh & Daniel - thats NOT the complete model no , u left out either 'C' or 'DVC' from that model no
its either
TSW306C
or
TSW306DVC
it does matter so which is it ???........


New member
Username: Myexpo

Chicago, IL US

Post Number: 7
Registered: Feb-06
Sorry its C...... not the dual voice coil


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 5899
Registered: Jul-05
ur amp
http://www.rockfordfosgate.com/products/product_details.asp?cat_id=2&series_id=6&family_id=20&item_id=91285&locale=en_US

Rated Power
150 W x 2 @ 4 Ohms RMS
300 W x 2 @ 2 Ohms RMS
600 W x 1 @ 4 Ohms bridged RMS

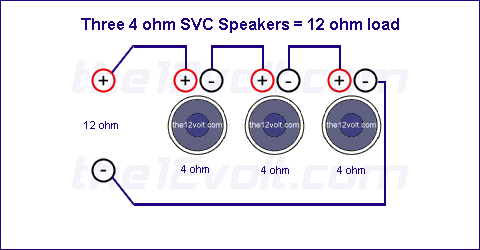

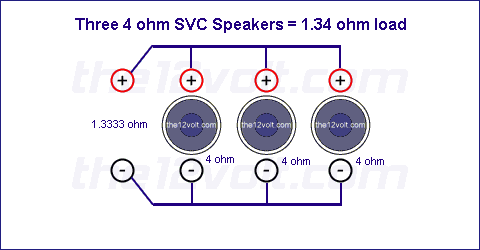

look @ this i'm not seeing a possible way 2 do it cause ur subs r normally connected this way
Upload
Upload
even if there is a way 2 hook it up - ur amp will be severly underpowering those subs which require 1200wrms combined 2 run well (though they can handle more wrms)

i'd say buy a good MONO amp that can do around 1500wrms @ 1ohm ...


Bronze Member
Username: Junior11124

NyUs

Post Number: 91
Registered: May-05
get the hifonics 1505d is 1500 watts at 1 ohm


Bronze Member
Username: Junior11124

NyUs

Post Number: 92
Registered: May-05
get the hifonics 1505d is 1500 watts at 1 ohm
