How do you wire a Quad Voice Coil Subwoofer



Silver Member
Username: Kirbdog22

New Bern, North Carolina USA

Post Number: 148
Registered: Nov-05
what do u run your amp at to wire a qvc sub
for example the MT check out the specs on the website then tell me
also what would you have to do to power an OZ QVC 4000W 1 ohm sub


Silver Member
Username: Tjmutlow

Post Number: 990
Registered: Sep-05
you need to something like the 2500d or bigger on it, or run 2 amps 1 per pair of coils, at a 2ohm load, or run 4amps, 1 per coil at 1ohm load, maybe a 600watt mono to each coil.


Silver Member
Username: N2audio

Lawrence, Ks USA

Post Number: 264
Registered: Mar-04
With a quad 1 you would have a few reasonable options.
One giant amp with the coils series/parallel for one ohm, or a pair of 2000w 2 ohm amps strapped, each with 2 coils in series. Maybe a pair of 1/2 ohm stable amps with each pair of coils parallel.
I'm sure if you took the time to get settings matched you could run a 1 ohm amp on each coil.

With the (RE, right?) MT it would depend on which version, but the variations would be similar to quad 1's.


Gold Member
Username: Mikechec9

Http://www.cardomain.c...

Post Number: 1959
Registered: May-05

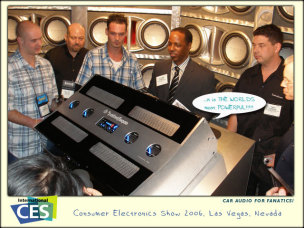

"One giant amp"

*presto*
Upload
RF T15kW CEA-2006 Power Ratings:
-500W x4 @ 4ohm
-1000W x4 @ 2ohm
-2000W x4 @ 1ohm
-3750W x4 @ .5ohm
-2000W x2 @ 4ohm
-4000W x2 @ 2ohm
-7500W x2 @ 1ohm


Silver Member
Username: Kirbdog22

New Bern, North Carolina USA

Post Number: 149
Registered: Nov-05
yes but on the RE site the voice coil configurations for the mt are very strange they are not just 1 ohm or 2ohm: they .7 ohm or 1.4 ohm and 2.8 ohm
