Woofer wiring question
|
Silver Member Username: Buddyleee5Post Number: 109 Registered: May-05 | just built my first box and put a wire terminal cup in hte back of the box. The box is a sealed sncloseure with 2 12" se's. its one big chamber. I am wiring the subs to a 1 ohm load and i was wondering how do i connect the speaker wire to the subs adn to the cup? i know is kind of a dumb question but i can't figure it out. the back of the terminal is just a screw and a nut. how many wires do i need as well? |
|

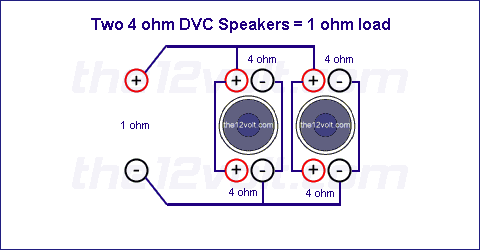

Gold Member Username: RovinTrinidad & T... Post Number: 4496 Registered: Jul-05 | wire it up like this & put the 2 ends to the cup's terminals  use this link 4 future reference http://www.the12volt.com/caraudio/woofer_configurations.asp |
|
Silver Member Username: Buddyleee5Post Number: 110 Registered: May-05 | ok so its one wire with each half of the wire on one terminal i understand that now... but how do i connect it to the terminal? there isnt a terminal. All it is is a screw with a nut to tighten on top of it. how do i attack speaker wire to that. do i have to put rings on it? |
|
Silver Member Username: Baseball1187Columbia, SC Post Number: 464 Registered: Dec-04 | no lol... take the wrench that came with it and loosen the screw... then on the bottom (of the terminal, below the screw) there is a hole you stick the wire in and tighten the screw on the wire.. |
