Wring problem



Anonymous

is there ne way to wire a single 4ohm sub and a dual 8ohm sub to get a 2ohm lad. If not what is the best way to wire them


Bronze Member
Username: Bdb_86

Bemidji, MN Usa

Post Number: 97
Registered: Dec-03
if you wire all the coils in perallel you should have 2 ohms


Bronze Member
Username: Db18

Post Number: 12
Registered: Apr-04
how do you wire it in parralel


Silver Member
Username: Bdb_86

Bemidji, MN Usa

Post Number: 103
Registered: Dec-03

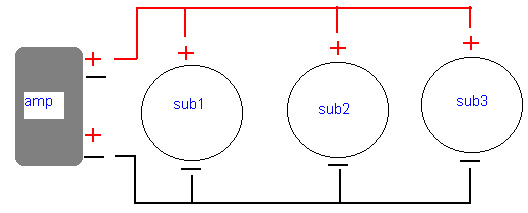

:-) parellel this you can do with any amount of subs but i recomend only doing it with 2 there are other ways of doing it with more than to subs but you let me know when you want to get into that o and the amp is bridjed in that picture too


Silver Member
Username: Bdb_86

Bemidji, MN Usa

Post Number: 104
Registered: Dec-03

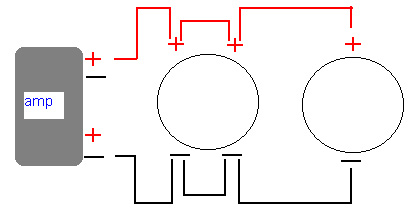

i should of made this one this is how your setup well look parallel wiring


Gold Member
Username: Glasswolf

NorthWest, Michigan USA

Post Number: 1955
Registered: Dec-03
note this only works with a mono amp
not a bridged stereo amp


it's me
Unregistered guest
now if i have two dual 2ohm subs and my amp is a mono 2ohm, how do i wire it


Anonymous

how would you wire a 4 ohm DVC sub to 2 ohms?


Silver Member
Username: Bdb_86

Bemidji, MN Usa

Post Number: 106
Registered: Dec-03
you wire it in parellel

and if your amp says on it or in the manual that it is bridjable then i recomend bridjing it but what i realy recomend is geting 2 subs that are the same or just using one of the 2 that you have now


irocz28
Unregistered guest
how should i wire 4 10" subs with 4ohms each if i got 2 amps, a 200 watt and a 350 watt


Bronze Member
Username: Vipersbyms

Post Number: 11
Registered: Apr-04
are the subs dual or single? and at what ohms are the amps stable?


Silver Member
Username: Bdb_86

Bemidji, MN Usa

Post Number: 107
Registered: Dec-03
ok irocz28 just answer these questions and then we can help you

are all the subs the same type and what type/s are they
are the subs dual voice coil or single voice coil
how many watts rms are each sub
what kind of amps are they
