James what sub did you want a box built for?
|
Gold Member Username: InsearchofbassPost Number: 2297 Registered: Jun-04 | i forget? |
|
Gold Member Username: SubfanaticWalton, Ky Post Number: 3812 Registered: Dec-04 | i want a design of an abc boc for 2 15 tis lol or 2 15 inch dub edition audiobahns, or 2 sony 12 p5s or 2 rf p3s |
|
Gold Member Username: InsearchofbassPost Number: 2309 Registered: Jun-04 | sub i already did it for you and spent alot of time on it and you said it was jiberish to you |
|
Gold Member Username: SubfanaticWalton, Ky Post Number: 3815 Registered: Dec-04 | i kno lol, i needed more explenation lol |
|
Gold Member Username: InsearchofbassPost Number: 2310 Registered: Jun-04 | i did explain it with that link to the abc box...it had pictures and a tutorial |
|
Gold Member Username: SubfanaticWalton, Ky Post Number: 3817 Registered: Dec-04 | ok ill try reading it again i havent smoked tonight |
|
Gold Member Username: InsearchofbassPost Number: 2311 Registered: Jun-04 | you shouldnt smoke at all |
|

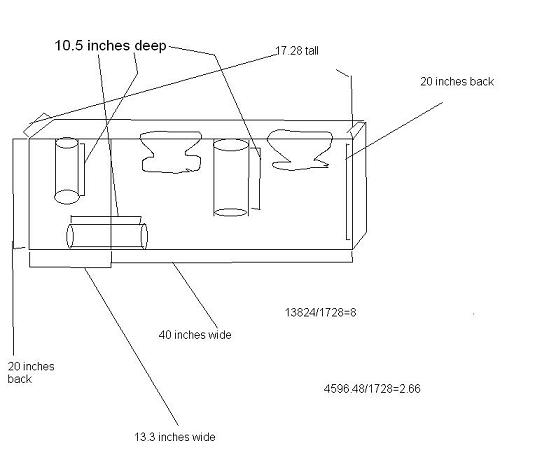

Gold Member Username: SubfanaticWalton, Ky Post Number: 3819 Registered: Dec-04 | is this diagram right???? but man thats harsh about smoking lol i tried soooo hard to get these measurements easy, is there an easier way, and this is internally not externally  |
|
Gold Member Username: InsearchofbassPost Number: 2312 Registered: Jun-04 | looks like it could be right can you post the link here with my results i cant remember where it was |
|
Gold Member Username: SubfanaticWalton, Ky Post Number: 3827 Registered: Dec-04 | https://www.ecoustics.com/electronics/forum/car-audio/138231.html sure thing sean, and by the way, i know you help me ALOT, thank you, you teach me alot too, i realy appreciate it |
|
Gold Member Username: InsearchofbassPost Number: 2315 Registered: Jun-04 | no prob soorry about the smoking comment i was just feeling irritated with people on here a bit |
|
Gold Member Username: SubfanaticWalton, Ky Post Number: 3833 Registered: Dec-04 | yea i understand, whos pissin you off lol, but does that box work?? |
|
Gold Member Username: InsearchofbassPost Number: 2317 Registered: Jun-04 | i cant understand the draft....its prob not you its prob me....can you explain the height width and depth of the box to me |
|
Gold Member Username: SubfanaticWalton, Ky Post Number: 3836 Registered: Dec-04 | its 17.28 tall for the whole thing. k. THe main chamber is 20 inches deep and 40 inches wide, this is all internally by the way, the second smaller chamber is 17.28 tall, 20 back and 13.3 inches wide, internally of course, and the first chamber is 8 cubic feet and the second is 2.66, the link to the website showing the abc box said the main chamber has to be at least twice the sizr of the second, so is that right 2.66 and 8 AFTER DISPLACEMENT???? or what, cause i dont know the displacement of the TI, you prolly do lol, am i right??? |
|
Gold Member Username: InsearchofbassPost Number: 2318 Registered: Jun-04 | your first chamber came out to 8.00 cf you want 5.33 cf. second chamber is 2.66 cf which is correct |
|
Gold Member Username: InsearchofbassPost Number: 2319 Registered: Jun-04 | finding the displacement of the subs is important and the displacement of the ports |
|
Gold Member Username: InsearchofbassPost Number: 2320 Registered: Jun-04 | 10.5 inch long ports three of them |
|
Gold Member Username: InsearchofbassPost Number: 2321 Registered: Jun-04 | needs to be a 66.666 percent 1st chamber after displacements and 33.333 percent 2nd chamber after displacements |
|
Gold Member Username: InsearchofbassPost Number: 2322 Registered: Jun-04 | so if the subs and port displacements in the first chamber were .60 then you would add .60 to the 5.33 cf target for the 1st chamber and do the same for the second chamber (ex. if the displacements for the second chamber were .10 then you would add .10 to 2.66 which is 2.76 cf) |
|
Gold Member Username: InsearchofbassPost Number: 2323 Registered: Jun-04 | done you turn lol |
|
Gold Member Username: James1115Wilton, Ct Post Number: 3309 Registered: Dec-04 | Hey sean I would love a box built for my avalanche 12 when I get it Chad said 1.5 tuned to about 28htz so thats what I have to work with at the moment. Also I just picked up a old Soundstream reference series 12 off of ebay I have been looking for this sub in good condition for about 2 years now and I finally got one man I am so psyched to do something with it. |
|
Gold Member Username: InsearchofbassPost Number: 2370 Registered: Jun-04 | ok would you want to try the abc triple chamber experiment box |
|
Gold Member Username: James1115Wilton, Ct Post Number: 3311 Registered: Dec-04 | yeah man sure |
|
Gold Member Username: InsearchofbassPost Number: 2376 Registered: Jun-04 | ok your ava should be a good canidate |
|
Gold Member Username: James1115Wilton, Ct Post Number: 3312 Registered: Dec-04 | which one the 15 or the 12? and how big are these boxes compared to normal ported enclosures? I dont want to take up a ton of space in the trunk of my new car. |
|
Gold Member Username: InsearchofbassPost Number: 2379 Registered: Jun-04 | lets do the 12 less room taken up per chamber |
