Hey king... diagram please?

JB Silver Member Username: Yakovaki Post Number: 171 Registered: Sep-07	Posted on Wednesday, January 16, 2008 - 04:35 GMT hey king...can you show me another diagram please? i need to show someone the diagram for 5 sats (or 4) to 4 receivers (all fta) thanks
The Coders Bronze Member Username: The_coders Post Number: 81 Registered: Jan-08	Posted on Wednesday, January 16, 2008 - 05:59 GMT

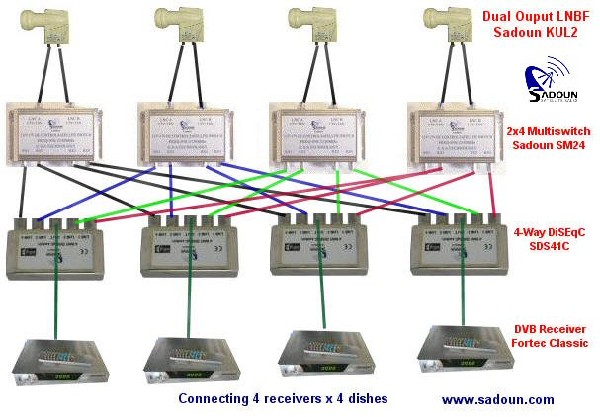

Yukon Silver Member Username: One_eye_jack Post Number: 213 Registered: Nov-07	Posted on Wednesday, January 16, 2008 - 13:28 GMT
The Outer Limits Bronze Member Username: Bernardmi Post Number: 51 Registered: Dec-07	Posted on Wednesday, January 16, 2008 - 13:33 GMT Just out of interest Yukon how does the SM24 work ? I know you can install tone switches (22kHz) after a diseqc switch but I don't get it for your config. Does the SM24 work on 13/18V and 0/22kHz ?
Yukon Silver Member Username: One_eye_jack Post Number: 214 Registered: Nov-07	Posted on Wednesday, January 16, 2008 - 14:19 GMT SM24 2x4 Multi-Switch is Non-powered Up to 4 satellite receivers can independently select different satellite channels, Works with C / KU band, DSS, FTA, DVB, and HDTV.
JB Silver Member Username: Yakovaki Post Number: 172 Registered: Sep-07	Posted on Wednesday, January 16, 2008 - 15:18 GMT thanks yukon great post (i couldnt find a diagram in my numerous searches) now with the sm24 switch, can i add 22k on to any of the diseqc's to add a 5th sat? thanks again yukon
