Pioneer Receiver Fan Problem??

New member

Username: Tim_hawker

Post Number: 6
Registered: Dec-03

Posted on Thursday, October 06, 2005 - 22:32 GMT

I was really bored today and decided to have a peek inside my Pioneer receiver. It's a vsx-d1011 (or Elite 43TX in America :-)

) if you're interested.

I was admiring the innards of the beast (sad I know) and i nociced something strange. The fan at the front of the receiver may be wired up incorrectly - The yellow is connected to the Fan+ and the red wire is connected to the Fanstop.

Here are some photos:

Correctly wired back fan:
Upload

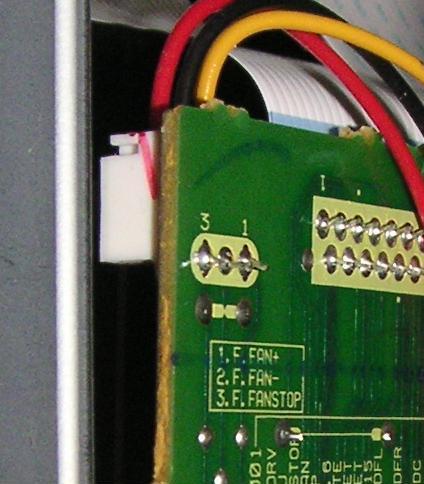

Is this front fan incorrecly wired?:
Upload

If the fan is incorrectly wired it sure would explain why it has never ever turned on - and i'm sure it should have. The receiver has become very hot during parties and stuff when the music is mega loud :-)

.

Any help would be really greatly appreciated.

Thanks
Tim

PS: I havent voided the warranty because it is out of warranty.

Jan Vigne

Gold Member

Username: Jan_b_vigne

Dallas, TX

Post Number: 6016
Registered: May-04

Posted on Thursday, October 06, 2005 - 23:19 GMT

It looks like a push-on connector for the front fan. They can only be "pushed on" in one direction, so the fan is correct from that stand point. It may still be wired incorrectly, but you'll have to ask Pioneer. Only a schematic (or direct comparison to another just like yours) can show how the fan should be wired.
